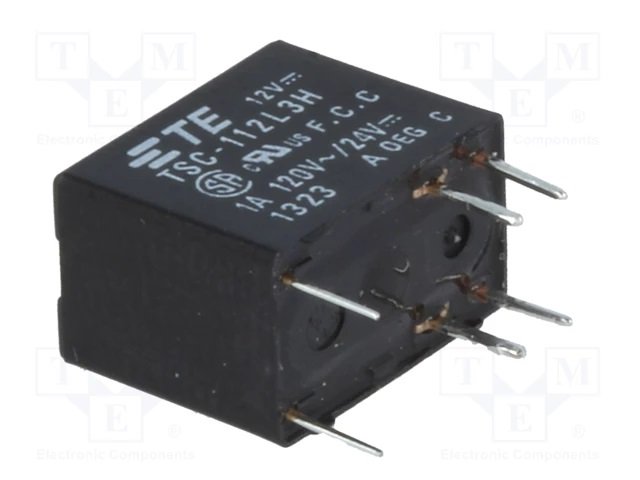

Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 12V DC
• AC contacts rating @R  1A / 120V AC
• (at resistive load)
• DC contacts rating @R  1A / 24V DC
• (at resistive load)
• Contact current max. 1A
• Switched voltage max. 30V DC,  max. 120V AC
• Relay variant subminiature
• Mounting PCB
• Coil resistance 960Ω
• Coil voltage min. 9V DC
• Operate time 5ms
• Body dimensions 12.3x7.4x9.9mm
• Release time 5ms
• Coil power consumption 150mW
• Mechanical durability 5000000 cycles
• Operating temperature -40...80°C
• Weight 3g
• Relay series TSC
• Electrical life 100000 cycles
• Switching capacity 24W,  120VA
• Contact material nickel
• Terminal pitch 2.54mm
• Coil current 12.5mA
• Contact plating silver plated

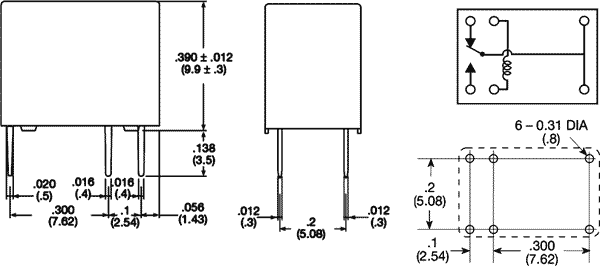

• Dimensions see
• Additional information
• Gross weight: 2.175 g
• Manufacturer part number: 2-1419130-4

Parametri

TE Connectivity
12VDC
SPDT
1A/120VAC
1A/24VDC
uz pārslēgšanu
monostabilais
1
1
