Apraksts

• Manufacturer FORWARD INDUSTRIAL CO.
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 12V DC
• AC contacts rating @R  1A / 125V AC
• DC contacts rating @R  1A / 30V DC
• Contact current max. 1A
• Switched voltage max. 60V DC,  max. 220V AC
• Relay variant subminiature
• Mounting PCB
• Coil resistance 320Ω
• Body dimensions 16x11x11.5mm
• Coil power consumption 450mW
• Operating temperature -25...75°C
• Relay series FRS1
• Contact resistance 50mΩ
• Contact material AgNi

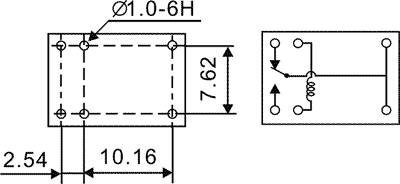

• Terminal pitch 2.54mm
• Coil current 37.5mA
• Papildu informācijas
• Masa bruto: 3.59 g
• Oriģināls simbols: FRS1-B-DC12

Parametri

FORWARD INDUSTRIAL CO.
12VDC
SPDT
1A/120VAC
2A/24VDC
uz pārslēgšanu
1
monostabilais
1
