Apraksts

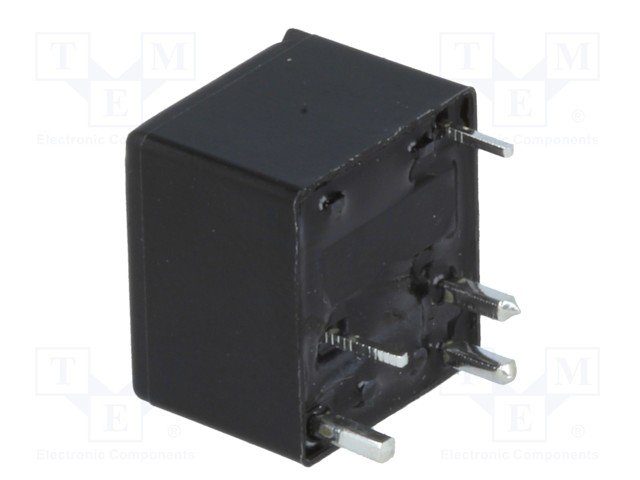

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 12V DC
• Contact current max. 25A
• Relay variant automotive
• Coil voltage min. 6.9V DC
• Coil resistance 254Ω
• Contact material AgSnO2
• Operating temperature -40...85°C

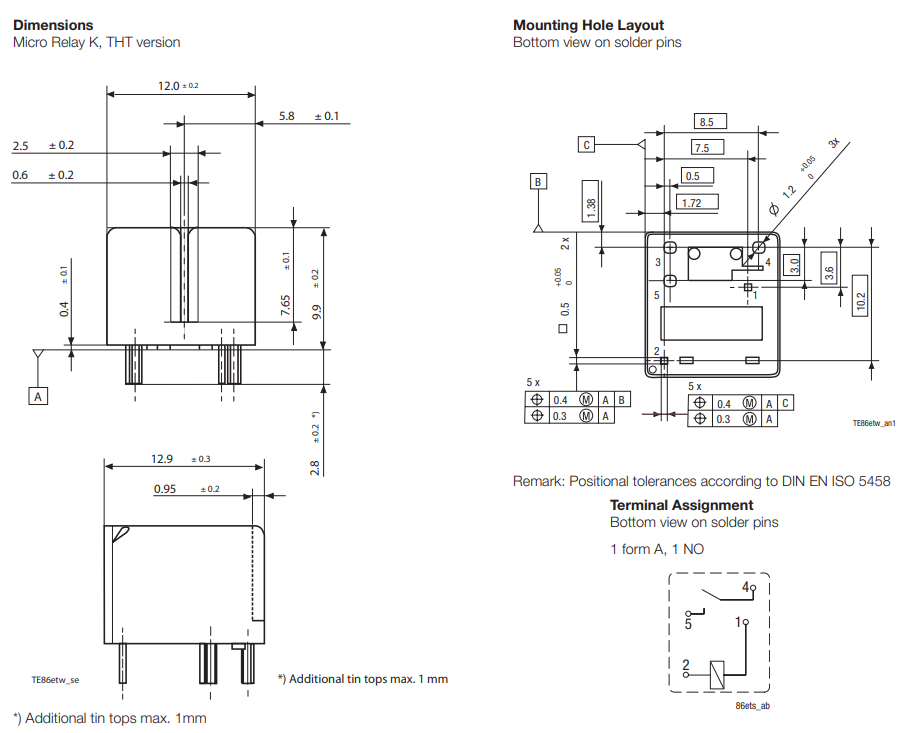

• Body dimensions 12.9x12x9.9mm
• Mounting PCB
• Coil power consumption 567mW
• Relay series K
• Mechanical durability 5000000 cycles
• Weight 8g
• Coil current 47.2mA
• Height 10.2mm
• Papildu informācijas
• Masa bruto: 3.857 g
• Oriģināls simbols: 1393280-6

Parametri

TE Connectivity
12VDC
SPDT
25A/12VDC
uz pārslēgšanu
1
monostabilais
1

Papildu dokumentācija
