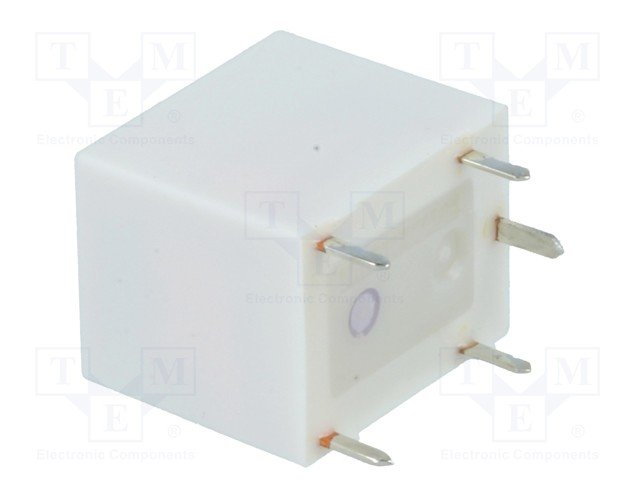

Apraksts

• Manufacturer FUJITSU-TAKAMISAWA
• Relay type electromagnetic

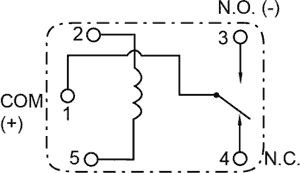

• Contacts configuration SPDT
• Rated coil voltage 12V DC
• DC contacts rating
• (at resistance load) 25 A / 14 VDC
• Contact current max. 35A
• Switched voltage max 16V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 240Ω
• Operate time 10ms
• Body dimensions 15.5 x 12.1 x 13.7mm
• Release time 5ms
• Operating temperature -40...85°C
• Relay series FBR51
• Contact material AgSnInO
• Terminal pitch 2mm
• Coil current 50mA

Parametri

FUJITSU
12VDC
SPDT
25A/14VDC
uz pārslēgšanu
1
monostabilais
1

Papildu dokumentācija
