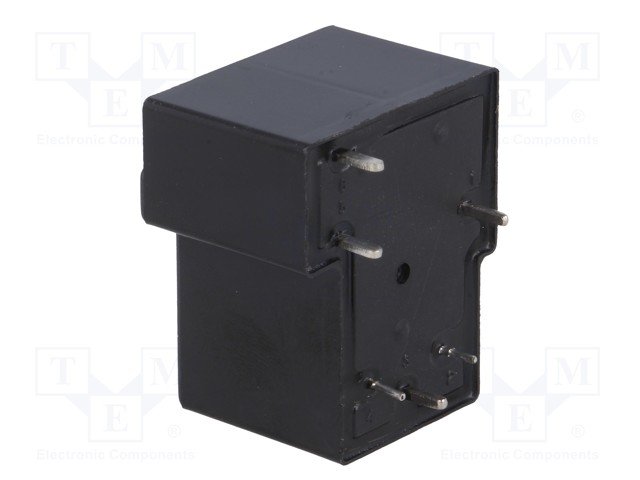

Apraksts

• Manufacturer Recoy/RAYEX ELECTRONICS
• Type of relay electromagnetic

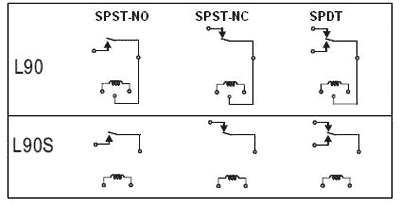

• Contacts configuration  SPDT
• Rated coil voltage 12V DC
• Contact current max. 30A
• Relay series L90
• Relay variant power,  sealed
• Operating temperature -55...85°C
• Mounting PCB
• Coil resistance 155Ω
• Switched voltage max. 30V DCmax. 240V AC
• Coil power consumption 900mW
• AC contacts rating @R  30A / 240V AC
• (at resistive load)
• Contact resistance 50mΩ
• DC contacts rating @R  20A / 30V DC
• (at resistive load)
• Leads for PCB
• Operate time 15ms
• Release time 15ms
• Contact material AgCdO
• Mechanical durability 10000000 cycles
• Electrical life 100000 cycles
• Dimensions see
• Additional information
• Gross weight: 23.5 g
• Manufacturer part number: L90-12W

Parametri

12VDC
SPDT
30A/240VAC
20A/30VDC
uz pārslēgšanu
1
RAYEX RAYEX ELECTRONICS
monostabilais
1
