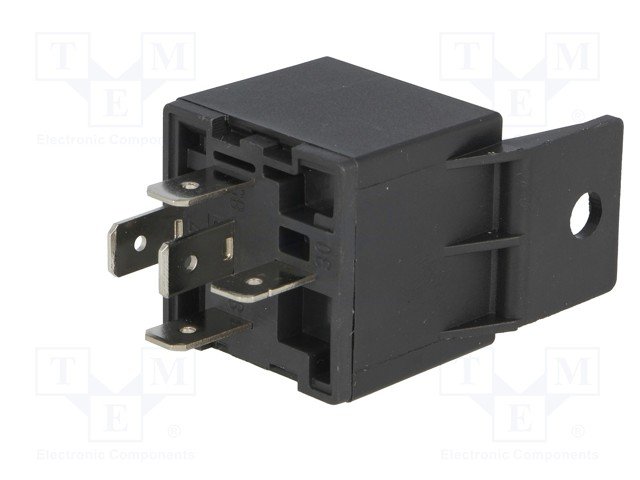

Apraksts

• Manufacturer FORWARD INDUSTRIAL CO.
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 12V DC
• Contact current max. 50A
• DC contacts rating @R  40A / 14V DC
• Relay variant automotive
• Coil voltage min. 7.8V DC
• Coil voltage max. 15.6V DC
• Coil resistance 80Ω
• Contact material AgSnO2
• Operating temperature -40...85°C
• Body dimensions 26.5x29x29mm
• Mounting on panel,  socket
• Coil power consumption 1.8W
• Relay series FRC2
• Contact resistance 30mΩ
• Leads 6,3x0,8mm connectors
• Mechanical durability 10000000 cycles
• Weight 35g
• Coil current 150mA
• Operate time 7ms
• Release time 5ms
• Electrical life 100000 cycles
• Related items CS1-CW,  RS-D03
• Switched voltage max. 75V DC
• Output configuration paskatīt

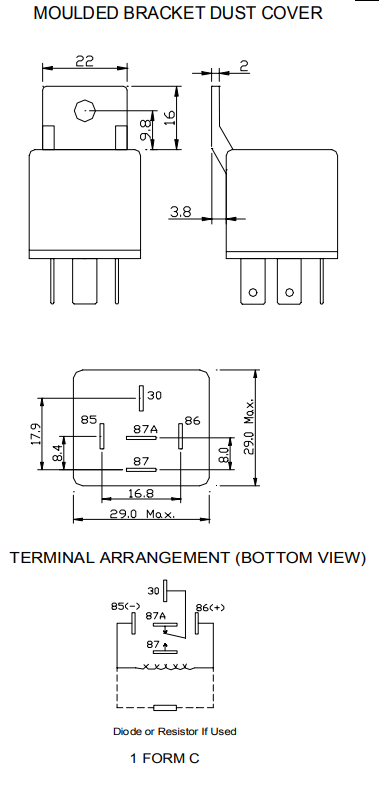

• Dimensions paskatīt
• Papildu informācijas
• Masa bruto: 35.1 g
• Oriģināls simbols: FRC2C-DC12

Parametri

12VDC
SPDT
uz pārslēgšanu
1
monostabilais
1
FORWARD INDUSTRIAL CO.
40A/14VDC

Papildu dokumentācija
