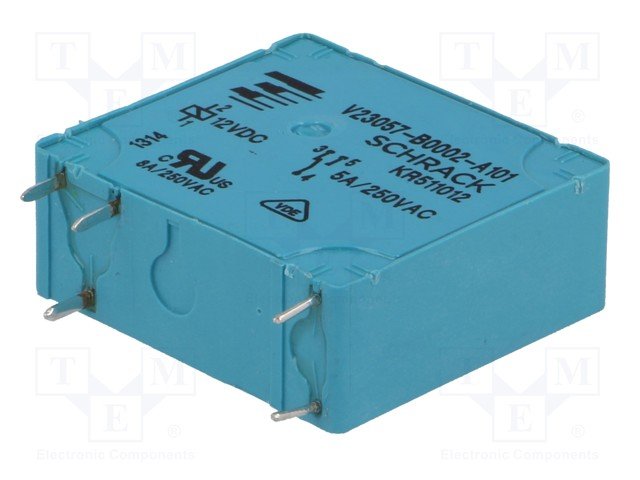

Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating @R
• (at resistance load) 5A / 250V AC
• DC contacts rating @R
• (at resistance load) 5A / 24V DC
• Contact current max. 5A
• Switched voltage max. 300V DC, max. 400V AC
• Relay variant miniature, vertical
• Mounting PCB
• Coil resistance 330Ω
• Coil voltage min. 8V DC

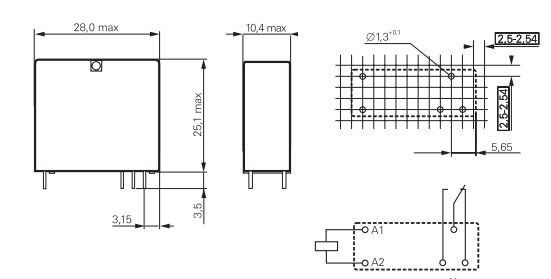

• Body dimensions 28x10.4x25.1mm
• Coil power consumption 436mW
• Mechanical durability 2000000cycles
• Operating temperature -40...70°C
• Relay series Card E
• Contact material AgNi
• Terminal pitch 2.54mm

Parametri

TE Connectivity
12VDC
SPDT
5A/250VAC
5A/24VDC
uz pārslēgšanu
1
monostabilais
1

Papildu dokumentācija
