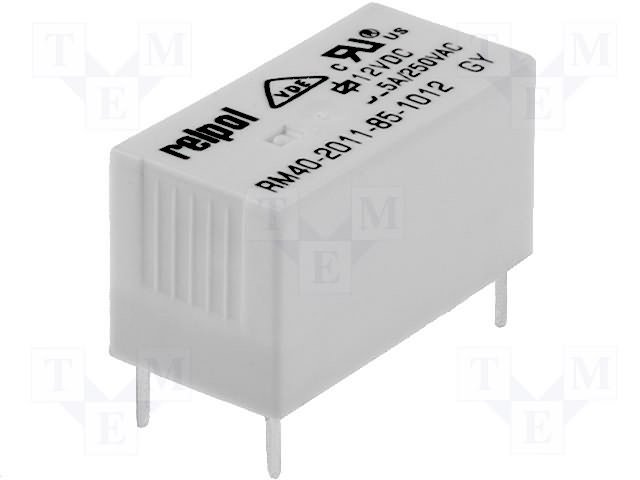

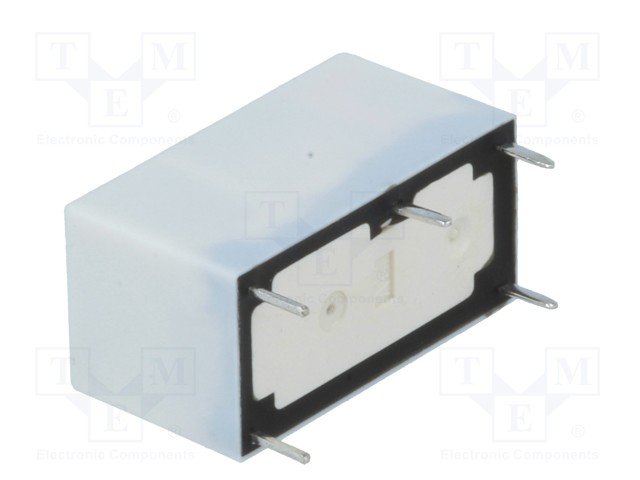

Apraksts

• Specification
• Relay type electromagnetic

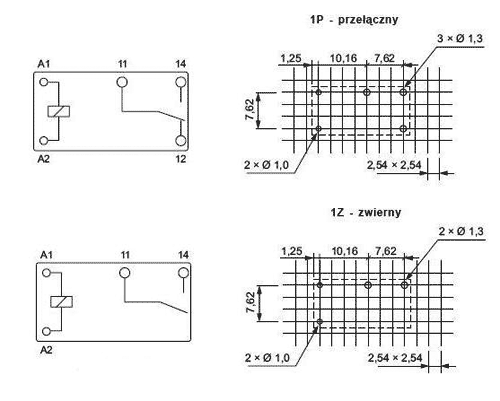

• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 5 A / 250 VAC
• DC contacts rating
• (at resistance load) 5 A / 30 VDC
• Contact current max. 5A
• Switched voltage max 30V DC, max 380V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 720Ω;
• Operate time 8ms
• Body dimensions 20 x 10 x 10.5mm
• Release time 4ms
• Coil power consumption 200mW
• Sealing IP64
• Operating temperature -40...85°C
• Relay series RM40
• Contact resistance 100mΩ;
• Contact material AgNi
• Contacts pitch 7.62mm

Parametri

RELPOL
12VDC
SPDT
5A/250VAC
5A/30VDC
uz pārslēgšanu
1
monostabilais
1

Papildu dokumentācija
