Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• Contact current max. 80A
• DC contacts rating
• (at resistance load) 60 A / 14 VDC
• Relay variant automotive
• Coil resistance 72Ω;
• Contact material AgCdO
• Mounting panel mounting
• Operating temperature -40...85°C

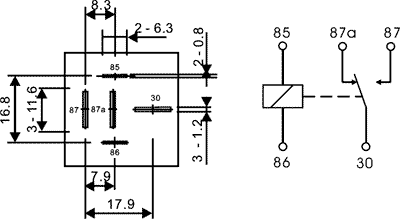

• Body dimensions 28 x 28 x 25mm
• Relay series AM3
• Contact resistance 50mΩ;
• Leads 6.3x0.8mm connectors, 9.5x1.2mm connectors
• Coil power consumption 1.8W
• Coil current 167mA
• Operate time 7ms
• Release time 5ms

Parametri

12VDC
SPDT
60A/14VDC
uz pārslēgšanu
1
RAYEX RAYEX ELECTRONICS
monostabilais
1
