Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 12V DC
• Contact current max. 70A
• DC contacts rating
• (at resistance load) 60 A / 14 VDC
• Relay variant automotive
• Coil voltage min. 7.8V DC
• Coil voltage max. 18V DC
• Coil resistance 80Ω;
• Switched voltage max 75V DC

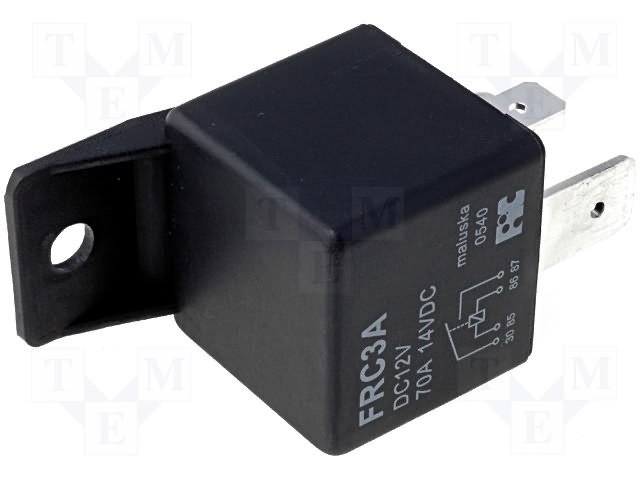

• Relay series FRC3
• Operating temperature -40...85°C
• Mounting on panel

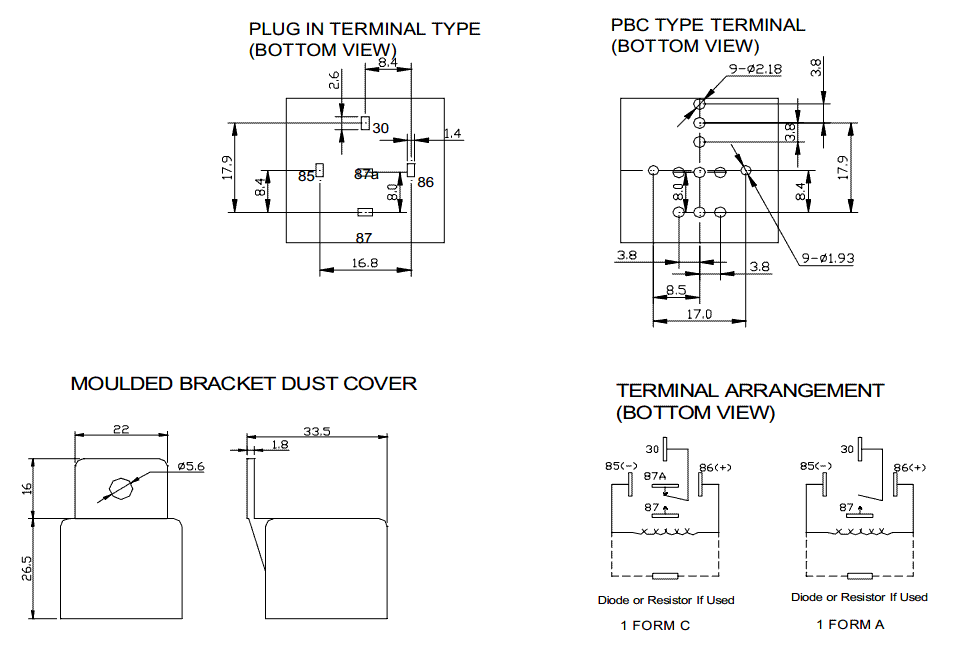

• Body dimensions 29 x 29 x 26.5mm
• Contact resistance 30mΩ;
• Mechanical durability 10000000cycles
• Coil power consumption 1.8W
• Weight 47g
• Leads 6.3x0.8mm connectors, 9.5x1.2mm connectors
• Coil current 150mA
• Operate time 10ms
• Release time 10ms
• Electrical life 100000cycles

Parametri

FORWARD INDUSTRIAL CO.
12VDC
SPDT
60A/14VDC
uz pārslēgšanu
1
monostabilais
1
