Apraksts

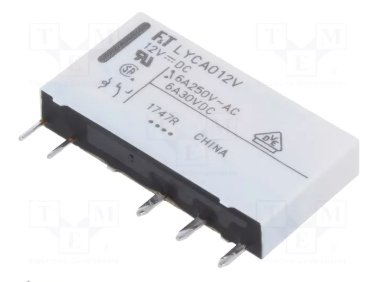

• Manufacturer FUJITSU
• Type of relay electromagnetic
• Contacts configuration SPDT
• Contacts configuration
• Rated coil voltage 12V DC
• Contact current max. 6A
• AC contacts rating @R(at resistive load) 6A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 6A / 24V DC
• at resistive load
• Relay series FTR-LY
• Switched voltage max. 250V AC
• Relay variant interface
• Mounting PCB
• Coil resistance 847Ω
• Operate time 8ms

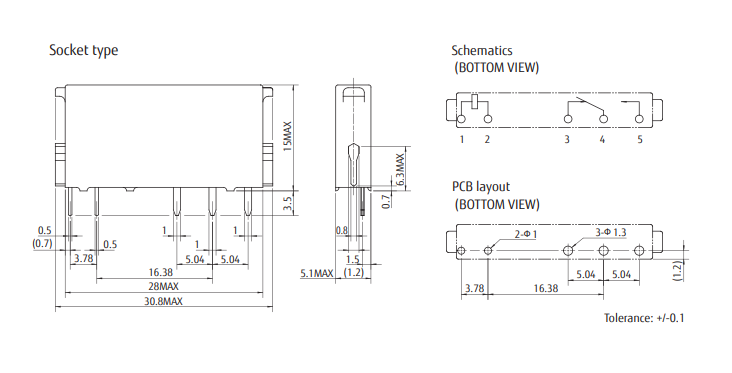

• Body dimensions 28x5x15mm
• Release time 4ms
• Coil power consumption 170mW
• Mechanical durability 10000000 cykli
• Operating temperature -40...85°C
• Contact resistance 30mΩ
• Electrical life 30000 cykli
• Contact material AgSnO2 Au
• Terminal pitch 5,04mm
• Masa bruto4.77 g

Parametri

12VDC
SPDT
6A/250VAC
6A/24VDC
uz pārslēgšanu
1
monostabilais
1
FUJITSU

Papildu dokumentācija
