Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 10 A / 250 VAC
• DC contacts rating
• (at resistance load) 5 A / 30 VDC
• Contact current max. 8A
• Switched voltage max 30V DC, max 250V AC
• Relay variant miniature

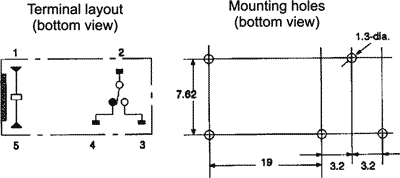

• Mounting PCB
• Coil resistance 655Ω;
• Operate time 15ms
• Body dimensions 28.5 x 20 x 15mm
• Release time 5ms
• Coil power consumption 220mW
• Operating temperature -40...85°C
• Relay series G6RN
• Contacts pitch 3.2mm
• Coil current 18.3mA

Parametri

OMRON
12VDC
SPDT
5A/30VDC
uz pārslēgšanu
1
monostabilais
1
8A/250VAC

Papildu dokumentācija
