Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 8 A / 250 VAC
• DC contacts rating
• (at resistance load) 8 A / 30 VDC
• Contact current max. 8A
• Switched voltage max 250V AC, max 300V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 620Ω;
• Operate time 7ms
• Body dimensions 28.5 x 10.1 x 12.3mm
• Release time 3ms
• Coil power consumption 220mW
• Mechanical durability 30000000cycles
• Operating temperature -40...85°C
• Weight 18g
• Relay series RYII
• Switching capacity 2000VA
• Contact material AgNi

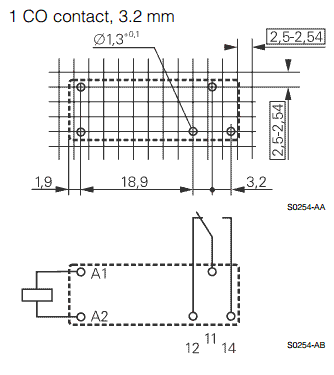

• Contacts pitch 3.2mm
• Coil current 19.16mA
• Enclosure description Standard seal

Parametri

TE Connectivity
12VDC
SPDT
8A/250VAC
8A/30VDC
uz pārslēgšanu
1
monostabilais
1

Papildu dokumentācija
