Apraksts

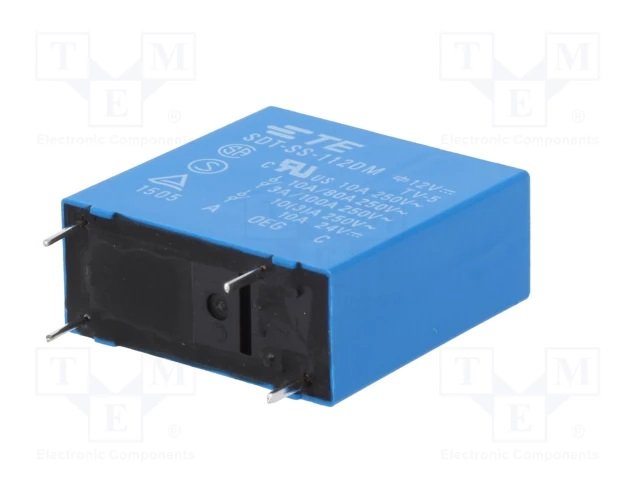

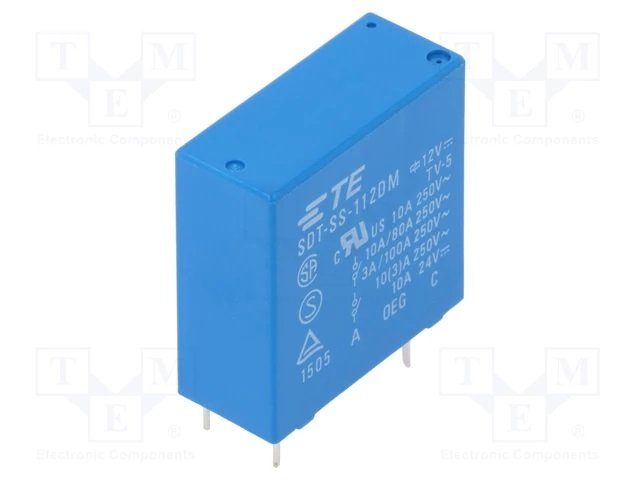

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration  SPST-NO
• Rated coil voltage 12V DC
• Contact current max. 10A
• AC contacts rating @R  10A / 250V AC
• (at resistive load)
• Switched voltage max. 30V DC,  max. 250V AC
• Relay variant miniature
• Mounting PCB
• Body dimensions 24x10x25mm
• Operating temperature -30...70°C
• Relay series SDT-R
• Terminal pitch 3.5mm

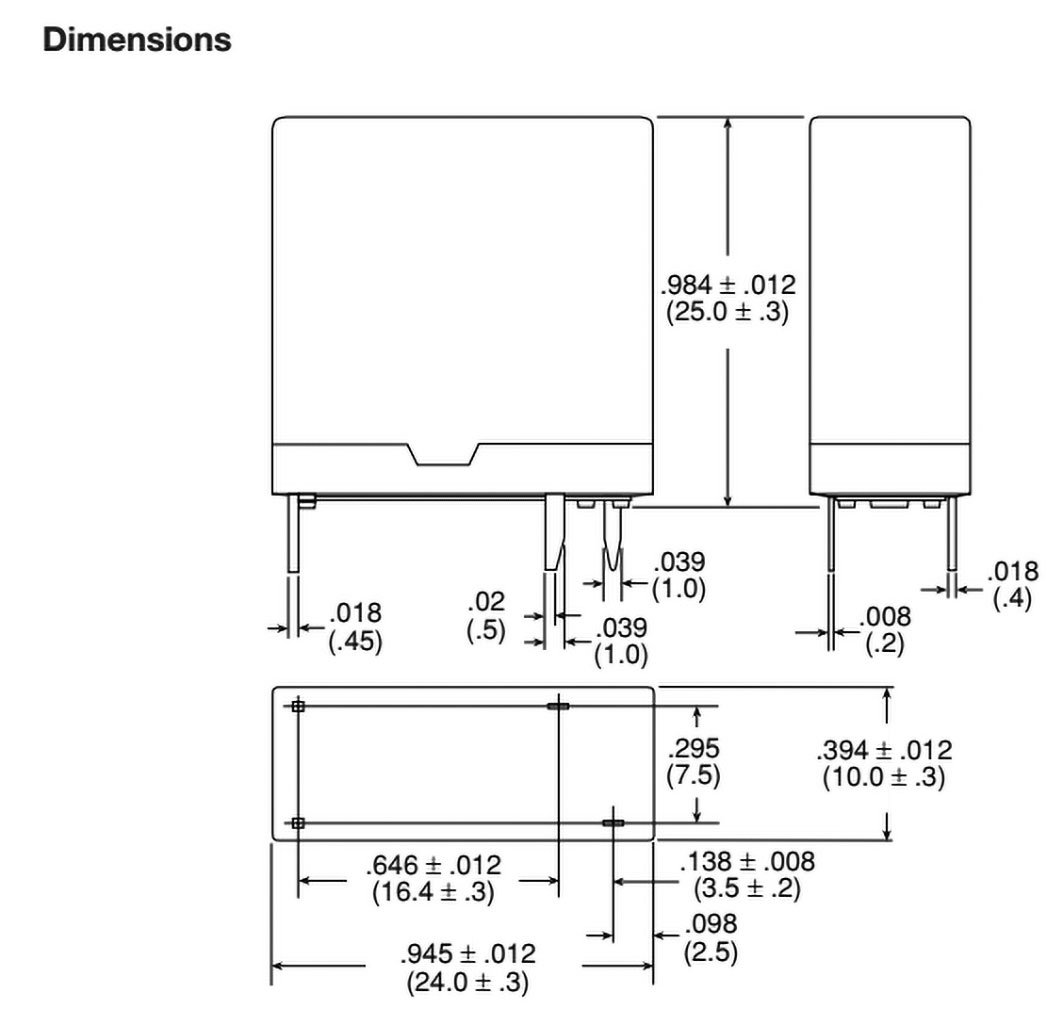

• Dimensions see

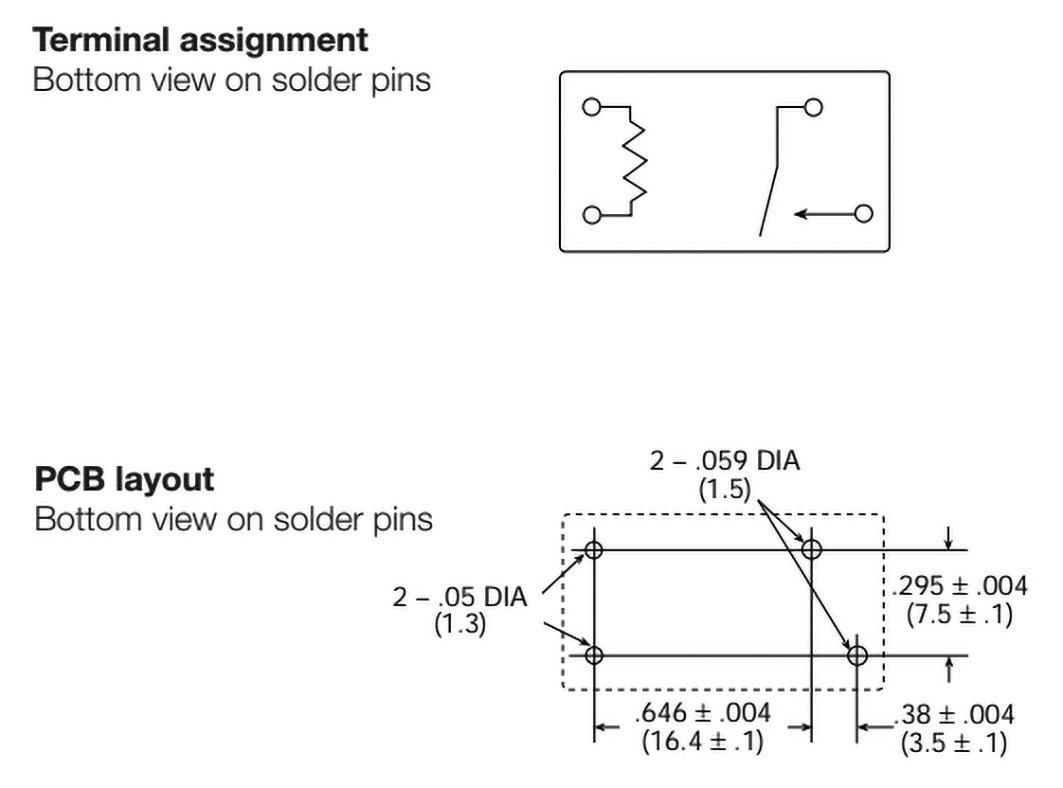

• Output configuration see
• Additional information
• Gross weight: 9.883 g
• Manufacturer part number: 1-1419126-8

Parametri

TE Connectivity
12VDC
SPST-NO
10A/250VAC
10A/24VDC
uz saslēgšanu
monostabilais
1
1

Papildu dokumentācija
