Apraksts

• Manufacturer RELPOL
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 8 A / 250 VAC
• DC contacts rating
• (at resistance load) 8 A / 28 VDC
• Contact current max. 10A
• Switched voltage max 440V AC, max 30V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 620Ω;
• Coil voltage min. 8.4V DC
• Coil voltage max. 15.6V DC
• Operate time 10ms
• Body dimensions 28.7 x 10.3 x 12.7mm
• Release time 5ms
• Coil power consumption 220mW
• Sealing IP67
• Mechanical durability 100000000cycles
• Operating temperature -40...85°C
• Weight 8g
• Relay series RM12N
• Contact resistance 100mΩ;
• Electrical life 1000000cycles
• Contact material AgNi

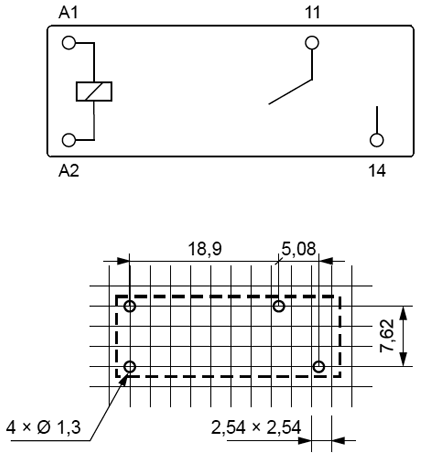

• Contacts pitch 7.62mm

Parametri

RELPOL
12VDC
SPST-NO
10A/250VAC
10A/28VDC
uz saslēgšanu
1
monostabilais
1

Papildu dokumentācija
