Apraksts

• Manufacturer OMRON OCB
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 12V DC
• AC contacts rating @R
• (at resistive load) 10A / 250V AC
• DC contacts rating @R
• (at resistive load) 10A / 30V DC
• Contact current max. 10A
• Switched voltage max. 125V DC, max. 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 720Ω
• Operate time 10ms

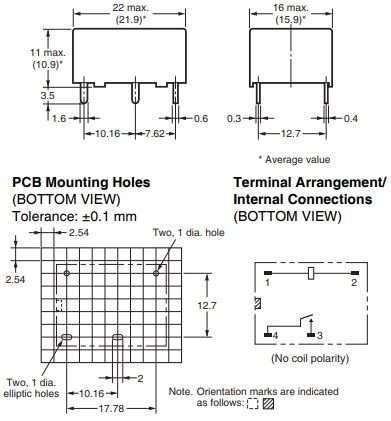

• Body dimensions 22x16x11mm
• Release time 10ms
• Coil power consumption 200mW
• Operating temperature -25...70°C
• Relay series G5CA
• Contact resistance 30mΩ
• Terminal pitch 10.16mm
• Coil current 16.7mA Additional information
• Gross weight: 8.2 g

Parametri

OMRON
12VDC
SPST-NO
10A/250VAC
10A/30VDC
uz saslēgšanu
1
monostabilais
1

Papildu dokumentācija
