Apraksts

• Manufacturer OMRON OCB
• Type of relay electromagnetic
• Contacts configuration  SPST-NO
• Rated coil voltage 12V DC
• AC contacts rating @R  16A / 250V AC
• (at resistive load)
• DC contacts rating @R  16A / 24V DC
• (at resistive load)
• Contact current max. 16A
• Switched voltage max. 24V DC,  max. 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 272Ω
• Operate time 15ms

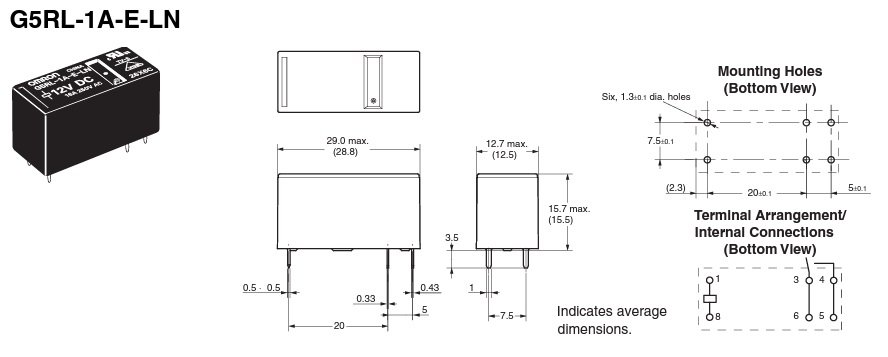

• Body dimensions 29x12.7x15.7mm
• Release time 15ms
• Coil power consumption 400mW
• Operating temperature -40...85°C
• Relay series G5RL
• Contact resistance 100mΩ
• Terminal pitch 5mm
• Coil current 44.2mA
• Leads for PCB
• Additional information
• Gross weight: 9.882 g
• Manufacturer part number: G5RL-1A-E-LN 12VDC

Parametri

OMRON
12VDC
SPST-NO
16A/250VAC
uz saslēgšanu
1
monostabilais
1
16A/24VDC
