Apraksts

• Manufacturer PANASONIC
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 12V DC
• AC contacts rating @R
• (at resistive load) 5A / 277V AC
• DC contacts rating @R
• (at resistive load) 3A / 30V DC
• Contact current max. 5A
• Switched voltage max. 30V DC, max. 277V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 720Ω
• Coil voltage min. 9V DC

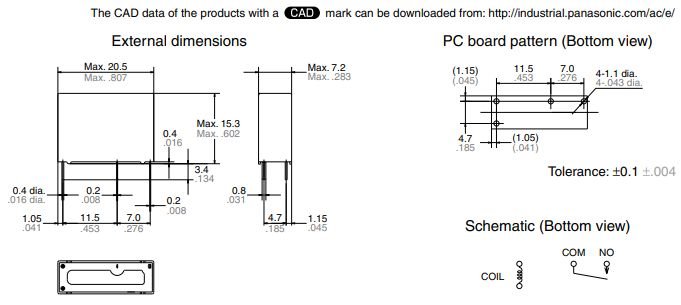

• Body dimensions 20.5x7.2x15.3mm
• Coil power consumption 200mW
• Mechanical durability 5000000cycles
• Operating temperature -40...85°C
• Relay series ALDP
• Contact material AgNi
• Coil current 16.7mA

Parametri

PANASONIC
12VDC
SPST-NO
5A/250VAC
3A/30VDC
uz saslēgšanu
monostabilais
1
1

Papildu dokumentācija
