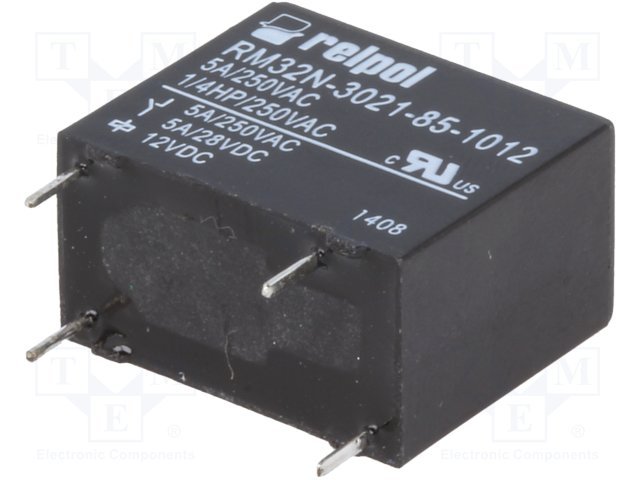

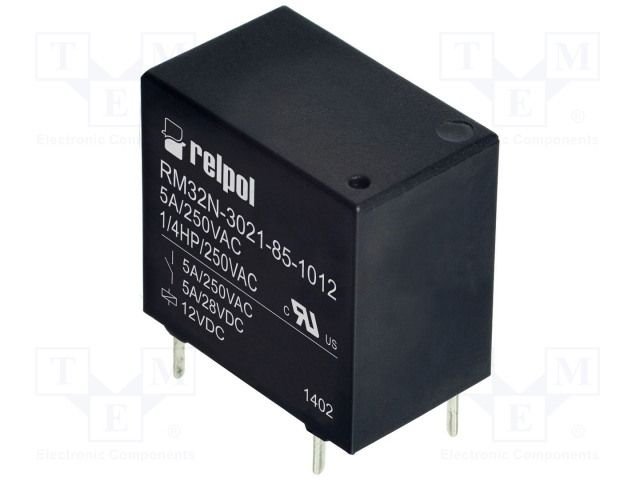

Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 12V DC
• AC contacts rating @R
• (at resistance load) 5A / 250V AC
• DC contacts rating @R
• (at resistance load) 5A / 28V DC
• Contact current max. 5A
• Switched voltage max. 28V DC, max. 277V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 320Ω
• Coil voltage min. 9V DC
• Coil voltage max. 15.6V DC
• Operate time 8ms

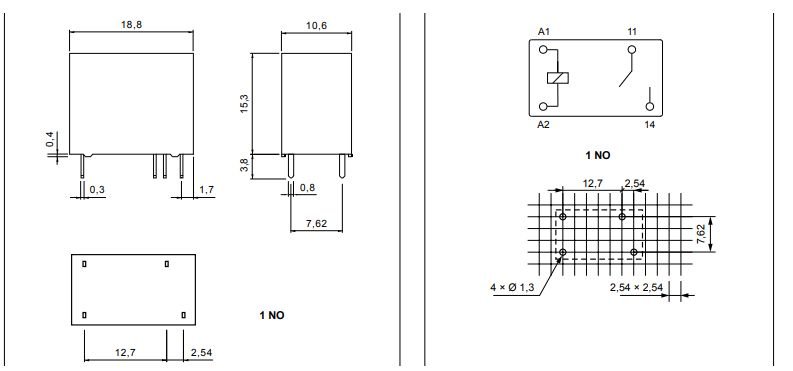

• Body dimensions 18.8x10.6x15.3mm
• Release time 5ms
• Coil power consumption 200mW
• IP rating IP64
• Mechanical durability 100000000cycles
• Operating temperature -40...70°C
• Relay series RM32N
• Contact resistance 100mΩ
• Electrical life 100000cycles
• Contact material AgSnO2
• Terminal pitch 7.62mm

Parametri

RELPOL
12VDC
SPST-NO
5A/250VAC
5A/28VDC
uz saslēgšanu
1
monostabilais
1
