Apraksts

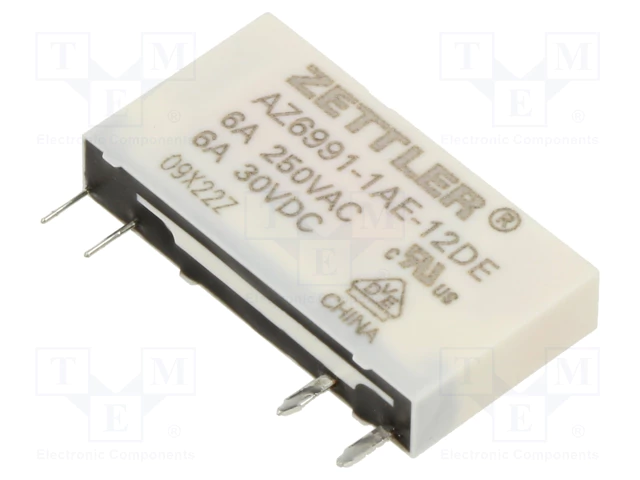

• Manufacturer ZETTLER
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 12V DC
• Contact current max. 8A
• AC contacts rating @R(at resistive load) 6A / 250V AC
• DC contacts rating @R(at resistive load) 6A / 30V DC
• Switched voltage max. 125V DC, max. 400V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 848Ω

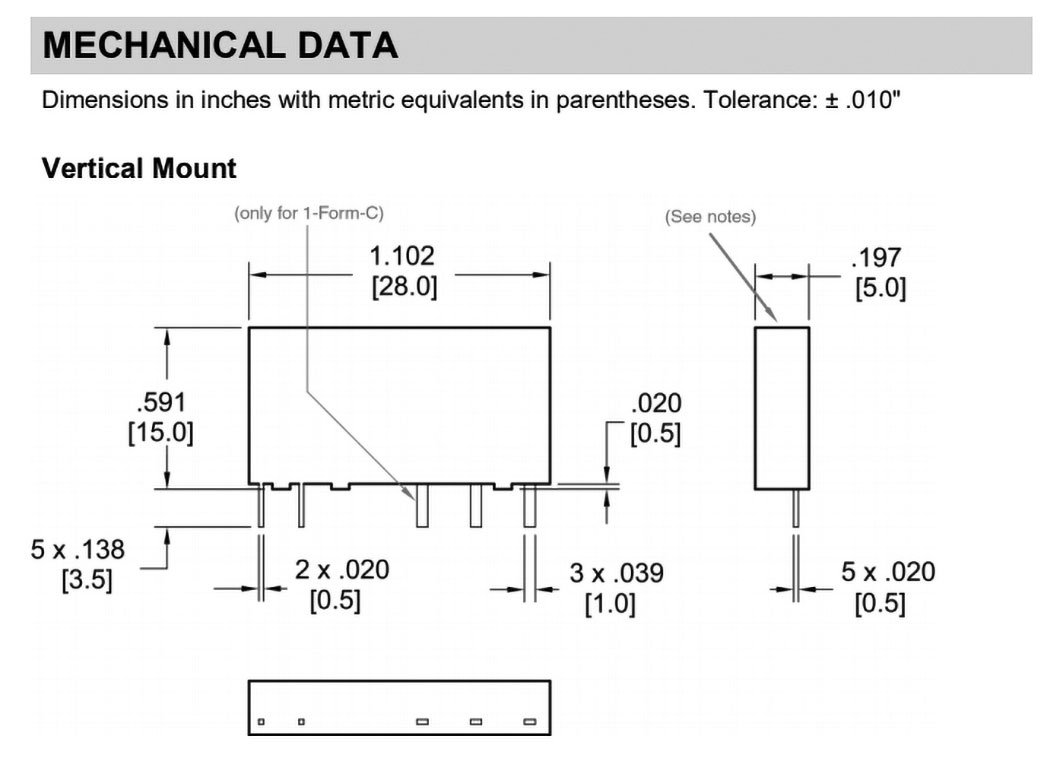

• Body dimensions 28x5x15mm
• Coil power consumption 170mW
• Operating temperature -40...85°C
• Relay series AZ6991
• Contact resistance 100mΩ
• Contact material AgSnO2

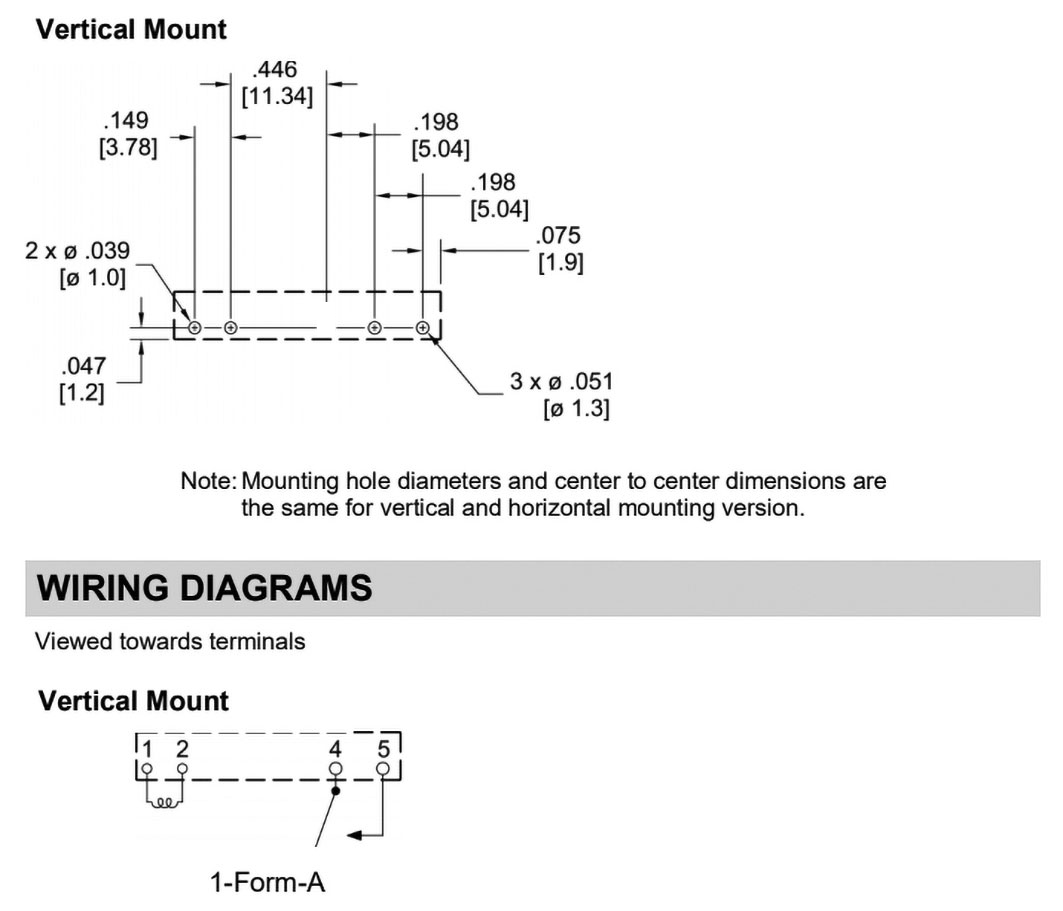

• Terminal pitch 5.04mm

Parametri

ZETTLER
12VDC
SPST-NO
6A/250VAC
6A/30VDC
uz saslēgšanu
monostabilais
1
1

Papildu dokumentācija
