Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 12V DC
• AC contacts rating @R
• (at resistance load) 8A / 250VAC
• DC contacts rating @R
• (at resistance load) 8A / 30VDC
• Contact current max. 8A
• Switched voltage max 250V AC, max 300V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 620Ω
• Operate time 7ms

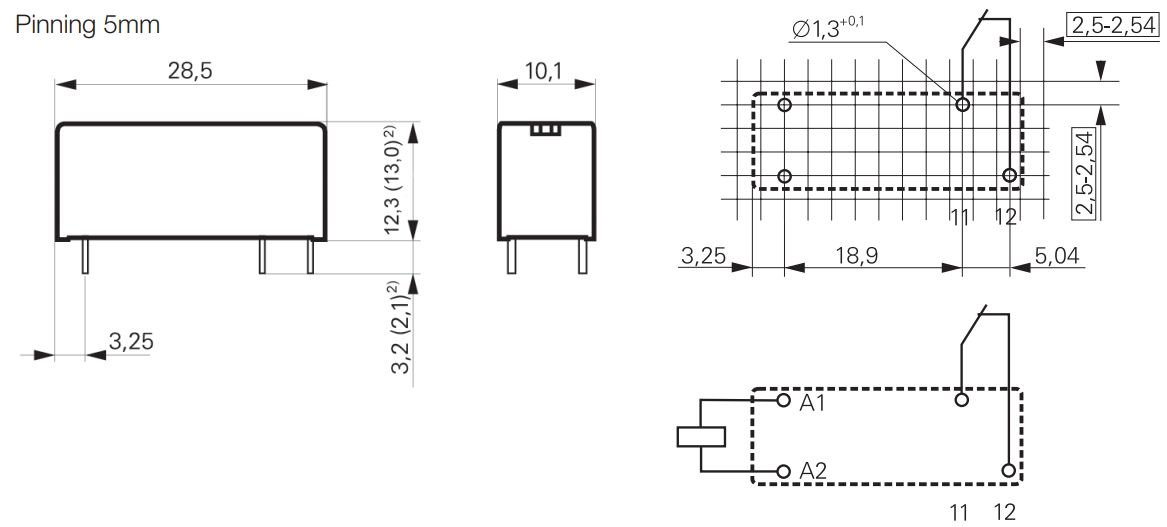

• Body dimensions 28.5 x 10.1 x 12.3mm
• Release time 3ms
• Coil power consumption 220mW
• IP rating IP40
• Mechanical durability 30000000cycles
• Operating temperature -40...85°C
• Weight 18g
• Relay series RYII
• Switching capacity 2000VA
• Contact material AgCdO
• Terminal pitch 5mm
• Coil current 19.3mA

Parametri

TE Connectivity
12VDC
SPST-NO
8A/250VAC
8A/30VDC
uz saslēgšanu
1
monostabilais
1
