Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPST-NO + SPST-NC
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 8 A / 250 VAC
• DC contacts rating
• (at resistance load) 8 A / 30 VDC
• Contact current max. 8A
• Switched voltage max 380V AC, max 125V DC
• Relay variant miniature
• Mounting PCB, socket
• Coil resistance 720Ω;
• Operate time 10ms

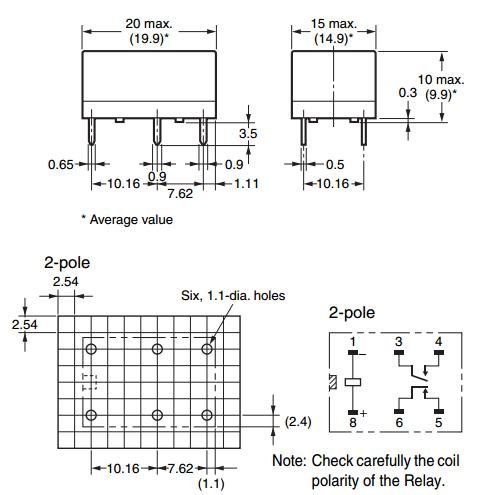

• Body dimensions 20 x 15 x 10mm
• Release time 10ms
• Operating temperature -25...70°C
• Relay series G6C
• Contact resistance 30mΩ;
• Contacts pitch 7.62mm
• Coil current 16.7mA
• Enclosure description Standard seal

Parametri

OMRON
12VDC
SPST-NO+SPST-NC
uz saslēgšanu/atslēgšanu
2
monostabilais
1
2x8A/250VAC
2x8A/30VDC

Papildu dokumentācija
