Apraksts

• Manufacturer OMRON Electronic Components
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Contacts configuration
• Rated coil voltage 5V DC
• Contact current max. 10A
• AC contacts rating @R(at resistive load) 10A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 10A / 30V DC
• at resistive load
• Manufacturer series G6C
• Switched voltage max. 125V DC, max. 380V AC
• Relay variant bistable, miniature
• Mounting PCB, socket
• Coil resistance 125Ω
• Operate time 10ms

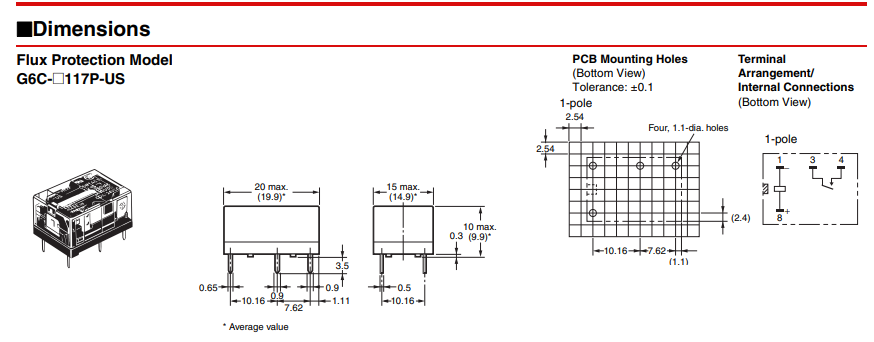

• Body dimensions 20x15x10mm
• Release time 10ms
• Operating temperature -25...70°C
• Contact resistance 30mΩ
• Terminal pitch 7,62mm
• Coil current 40mA
• Enclosure description standard seal
• Design single coil
• Masa bruto5.595 g

Parametri

OMRON
DC5V
SPST-NO
10A/250VAC
10A/30VDC
uz saslēgšanu
monostabilais
1
