Apraksts

• Manufacturer ZETTLER
• Type of relay electromagnetic

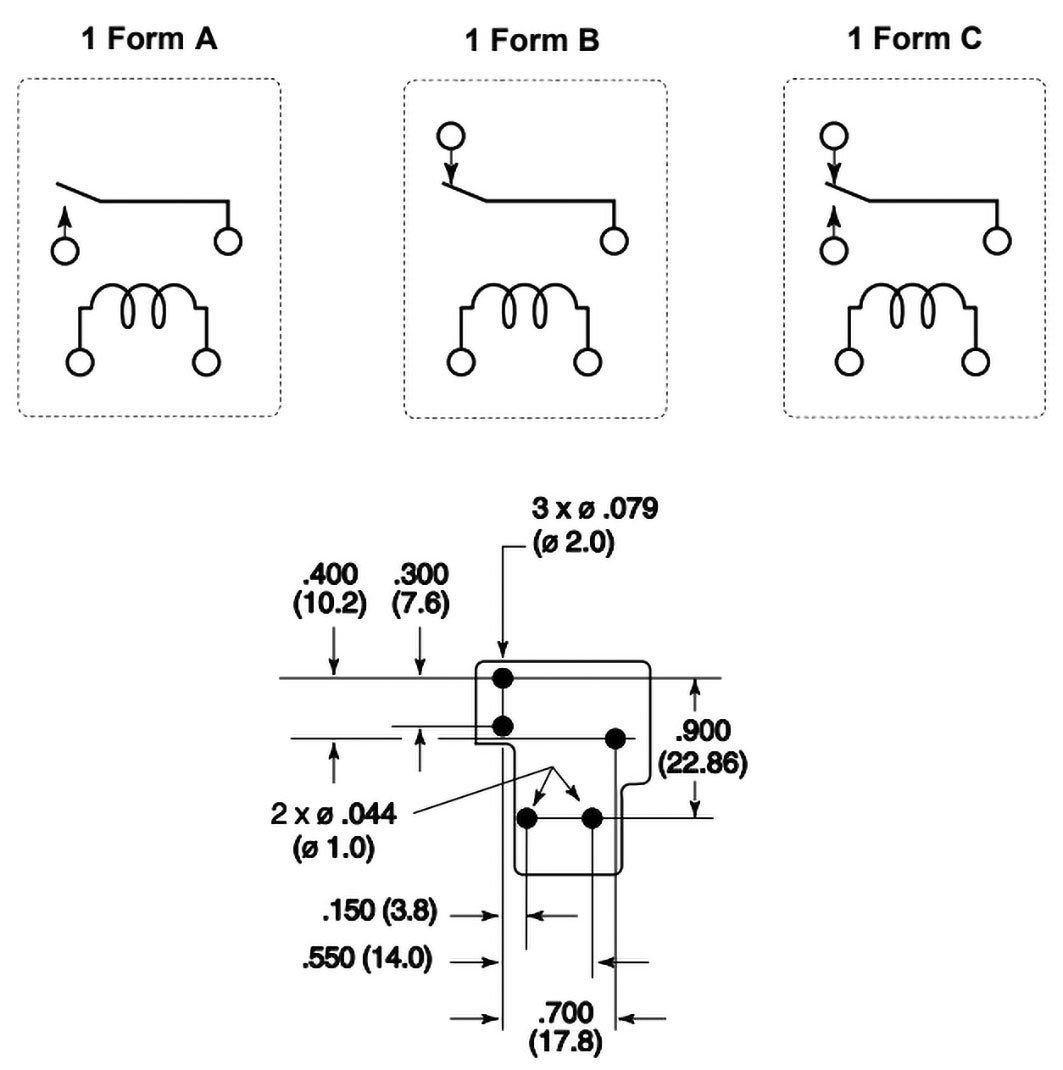

• Contacts configuration SPST-NO
• Rated coil voltage 15V DC
• Contact current max. 40A
• Relay series AZ2150
• Relay variant power
• Operating temperature -55...85°C
• Mounting PCB
• Coil resistance 256Ω

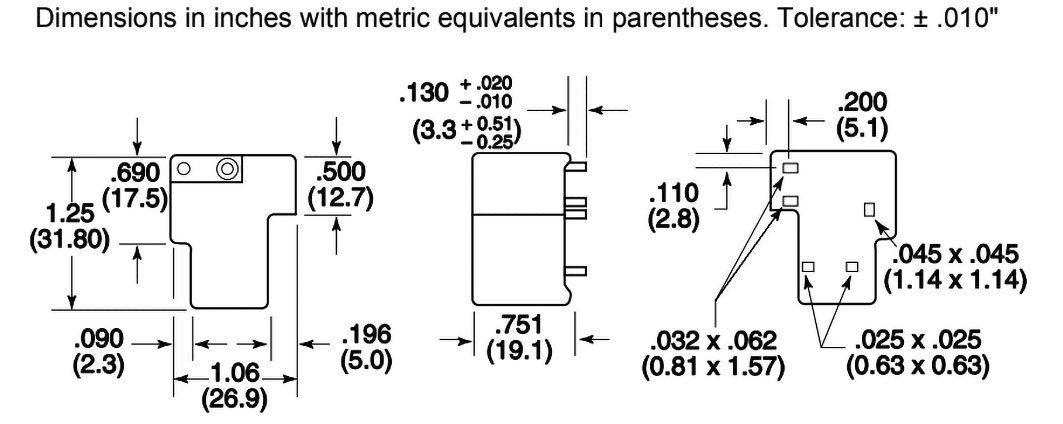

• Body dimensions 31.8x26.9x19.1mm
• Switched voltage max. 30V DC, max. 300V AC
• Coil power consumption 900mW
• AC contacts rating @R(at resistive load) 40A / 250V AC
• Contact material AgCdO
• Weight 25g

Parametri

ZETTLER
15VDC
SPST-NO
40A/250VAC
20A/30VDC
uz saslēgšanu
monostabilais
1
