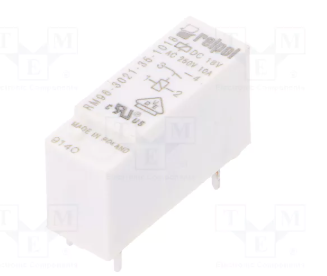

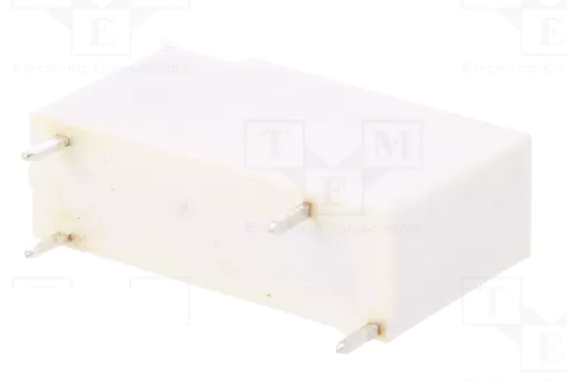

Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Contacts configuration
• Rated coil voltage 18V DC
• Contact current max. 8A
• AC contacts rating @R(at resistive load) 8A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 8A / 24V DC
• at resistive load
• Manufacturer series RM96
• Switched voltage max. 120V DC, max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1.5kΩ
• Coil voltage min. 12.6V DC
• Coil voltage max. 44V DC
• Operate time 10ms
• Body dimensions 28x10x16.2mm
• Release time 5ms
• Coil power consumption 300mW
• IP rating IP67
• Mechanical durability 20000000 cycles
• Operating temperature -40...80°C
• Contact resistance 100mΩ
• Contact material AgSnO2
• Terminal pitch 5mm
• Height 16.2mm
• OEM number 852858
• Number of pins 4

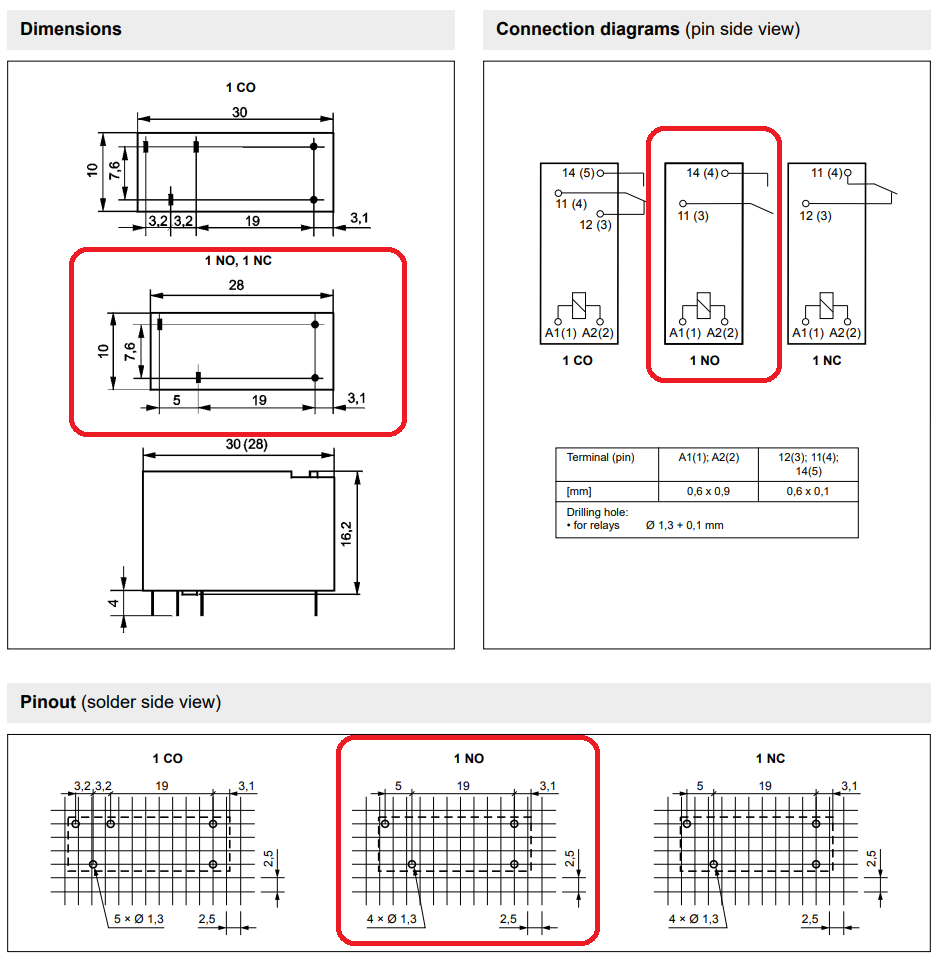

• DimensionsSee
• Gross weight10.245 g

Parametri

RELPOL
DC18V
SPST-NO
8A/250VAC
8A/24VDC
uz saslēgšanu
monostabilais
1

Papildu dokumentācija
