• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration  3PDT
• Rated coil voltage 230V AC
• AC contacts rating @R  10A / 250V AC
• DC contacts rating @R  10A / 24V DC
• Contact current max. 20A
• Switched voltage max. 250V DC,  max. 440V AC
• Relay variant industrial
• Mounting socket
• Relay series R15
• Operating temperature -40...55°C

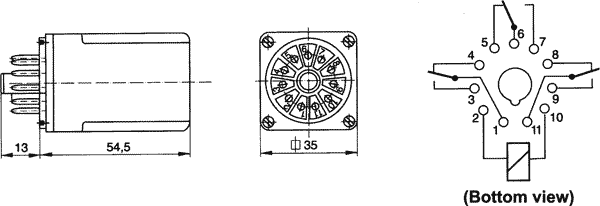

• Body dimensions 35x35x54.5mm
• Coil resistance 7.08kΩ
• Contact resistance 100mΩ
• Coil power consumption 1.6VA
• Leads stud terminals
• Number of pins 11
• Electrical connection round socket
• Kind of connector undecal
• Related items GZP11,  GZU11,  PZ11
• OEM number 802874
• Optional equipment
• mechanical indicator
• test button with blocking function
• Additional information
• Gross weight: 82.91 g
• Manufacturer part number: R15-2013-23-5230-WT
