Apraksts

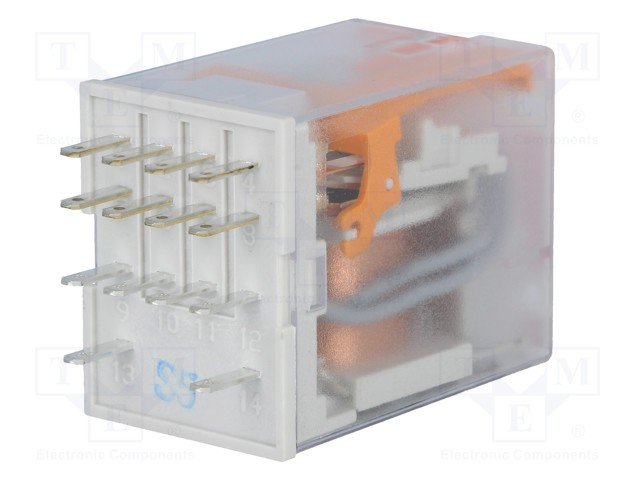

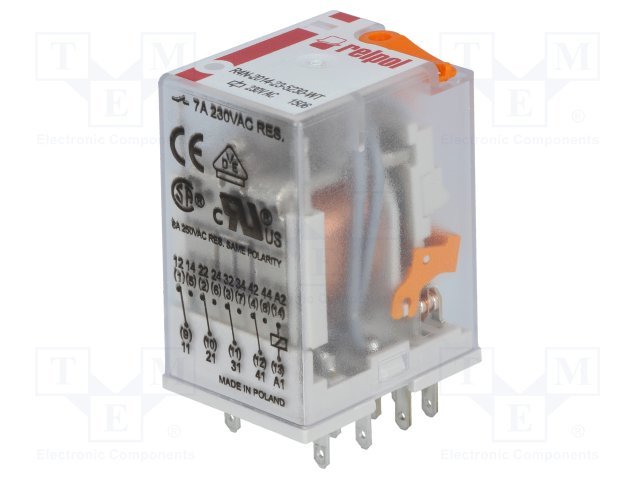

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration 4PDT
• Rated coil voltage 230V AC
• AC contacts rating @R
• (at resistance load) 6A / 250VAC
• DC contacts rating @R
• (at resistance load) 6A / 24VDC
• Contact current max. 6A
• Switched voltage max 250V AC, max 250V DC
• Relay variant industrial
• Mounting socket
• Relay series R4N
• Operating temperature -40...55°C

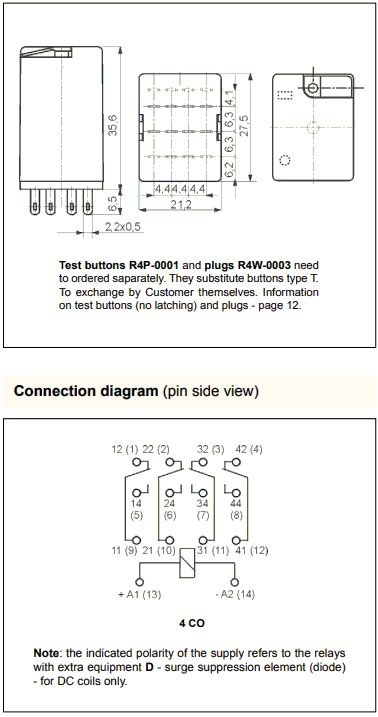

• Body dimensions 27.5 x 21.2 x 35.6mm
• Coil resistance 16100Ω
• Contact resistance 100mΩ
• Contact material AgNi
• Coil power consumption 1.6VA
• Leads 2,2x0,5mm connectors
• IP rating IP40
• Number of pins 14
• Related items G4, GZ4, GZM4, GZT4
• Max surge current 12A Optional equipment:
• mechanical indicator
• test button with blocking function
• Additional information
• Gross weight: 0.03 kg

Parametri

RELPOL
230VAC
4PDT
uz pārslēgšanu
monostabilais
4
4x6A/250VAC
4x6A/24VDC
