Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 230V AC
• AC contacts rating
• (at resistance load) 10 A / 250 VAC
• DC contacts rating
• (at resistance load) 10 A / 24 VDC
• Contact current max. 20A
• Switched voltage max 440V AC, max 250V DC
• Relay variant industrial
• Mounting socket
• Relay series R15
• Operating temperature -40...55°C

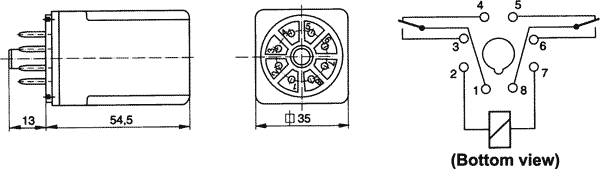

• Body dimensions 35 x 35 x 54.5mm
• Coil resistance 7.08kΩ;
• Contact resistance 100mΩ;
• Coil power consumption 1.6VA, 1.5W
• Leads stud terminals

Parametri

RELPOL
230VAC
DPDT
2x10A/250VAC
2x10A/24VDC
uz pārslēgšanu
monostabilais
2
