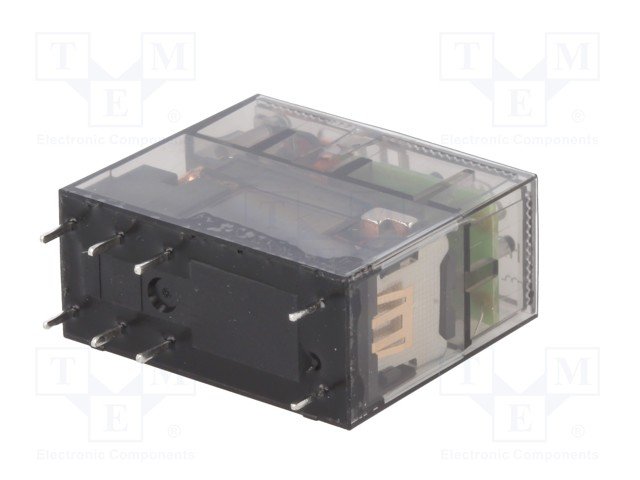

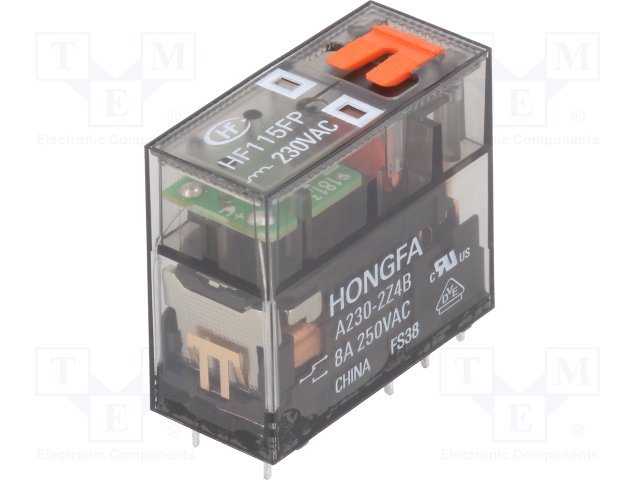

Apraksts

• Manufacturer HONGFA RELAY
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 230V AC
• AC contacts rating @R
• (at resistance load) 8A / 250VAC
• Contact current max. 8A
• Switched voltage max 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 32.5kΩ
• Coil voltage min. 172.5V AC
• Operate time 15ms

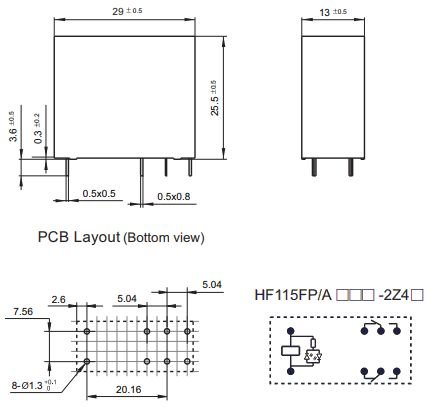

• Body dimensions 29 x 25.5 x 13mm
• Release time 8ms
• Coil power consumption 0.75VA
• Operating temperature -40...70°C
• Contact resistance 100mΩ
• Contact material AgNi
• Terminal pitch 5mm

Parametri

HONGFA RELAY
230VAC
DPDT
2x8A/250VAC
uz pārslēgšanu
monostabilais
2
