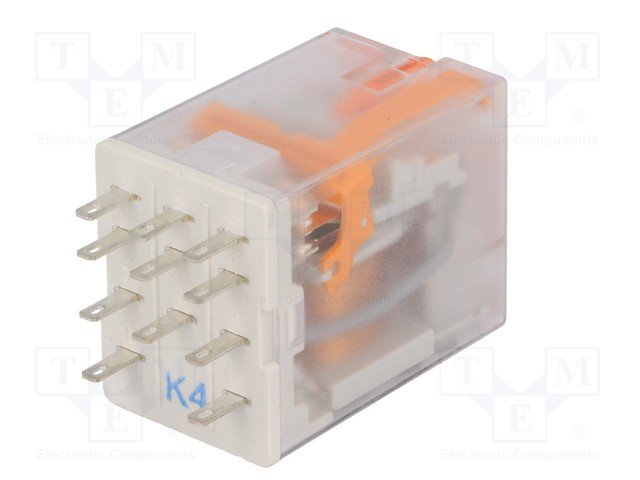

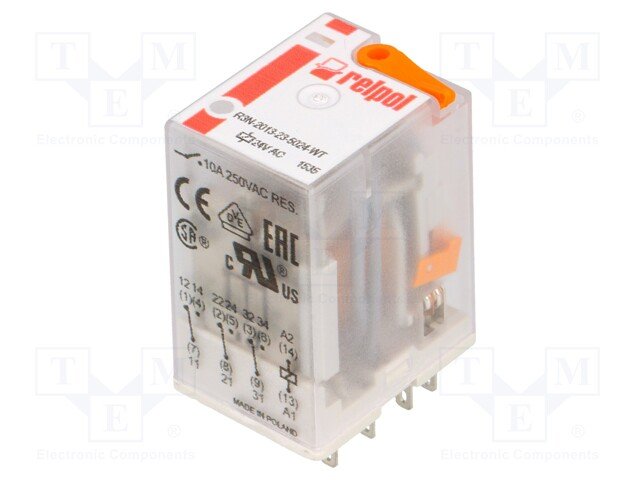

Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration  3PDT
• Rated coil voltage 24V AC
• AC contacts rating @R  10A / 250V AC
• DC contacts rating @R  10A / 24V DC
• Contact current max. 20A
• Switched voltage max. 250V DC,  max. 440V AC
• Relay variant industrial
• Mounting socket
• Relay series R3N
• Operating temperature -40...55°C

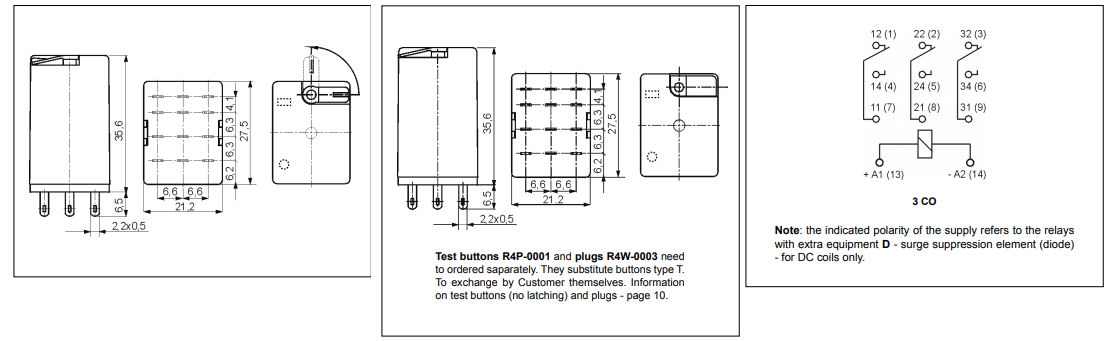

• Body dimensions 27.5x21.2x35.6mm
• Coil resistance 158Ω
• Contact resistance 100mΩ
• Coil power consumption 1.6VA
• Leads 2,2x0,5mm connectors
• IP rating IP40
• Number of pins 11
• OEM number 861008
• Optional equipment
• mechanical indicator
• test button with blocking function
• Additional information
• Gross weight: 33.01 g
• Manufacturer part number: R3N-2013-23-5024-WT

Parametri

RELPOL
AC24V
3PDT
3x10A/250VAC
3x10A/24VDC
uz pārslēgšanu
monostabilais
3
