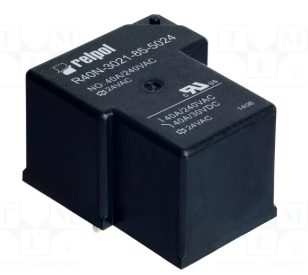

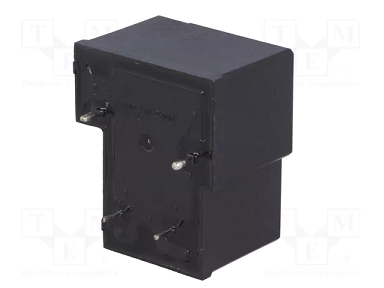

Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V AC
• Contact current max. 40A
• Switched voltage max. 110V DC, max. 300V AC
• Relay variant power
• Manufacturer series R40N
• Operating temperature -55...100°C
• Mounting PCB
• Body dimensions 32.5x27.6x20.5mm
• AC contacts rating @R(at resistive load) 40A / 240V AC
• Coil resistance 120Ω
• Contact material AgSnO2
• DC contacts rating @R(at resistive load) 40A / 30V DC
• Contact resistance 30mΩ
• Operate time 15ms
• Mechanical durability 100000000 cycles
• Coil power consumption 0.9VA
• Release time 10ms
• Electrical life 1000000 cycles
• IP rating IP64
• OEM number 2614841
• Gross weight26.405 g

Parametri

RELPOL
AC24V
SPST-NO
40A/240VAC
40A/30VDC
uz saslēgšanu
monostabilais
1

Papildu dokumentācija
