Apraksts

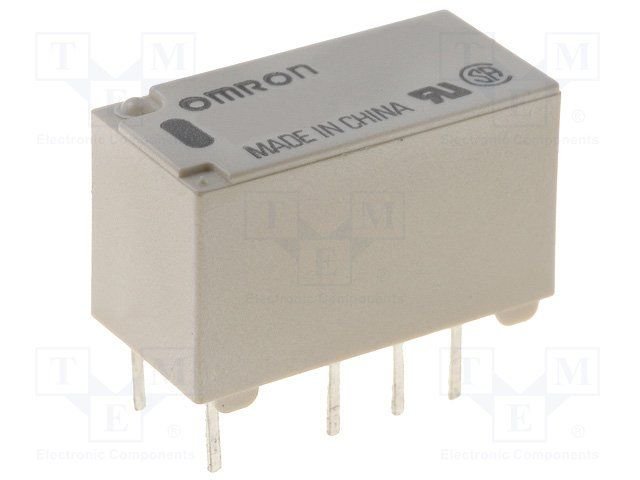

• Manufacturer OMRON OCB
• Type of relay electromagnetic
• Contacts configuration  DPDT
• Rated coil voltage 24V DC
• AC contacts rating @R  0.5A / 125V AC
• DC contacts rating @R  2A / 30V DC
• Contact current max. 2A
• Switched voltage max. 220V DC,  max. 250V AC
• Relay variant subminiature
• Mounting PCB
• Coil resistance 2.88kΩ
• Operate time 4ms

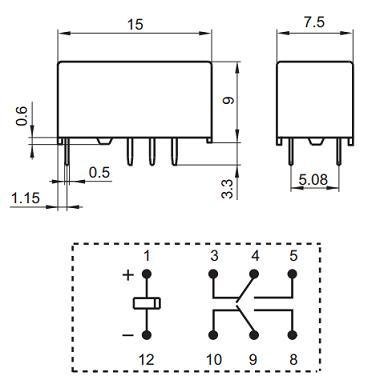

• Body dimensions 14.8x7.3x9.2mm
• Release time 4ms
• Coil power consumption 200mW
• Operating temperature -40...85°C
• Relay series G6S
• Contact resistance 75mΩ
• Terminal pitch 2.54mm
• Coil current 8.3mA
• Additional information
• Gross weight: 2.175 g
• Manufacturer part number: G6S-2 24VDC

Parametri

OMRON
DC24V
DPDT
uz pārslēgšanu
monostabilais
2
2x0.5A/125VAC
2x2A/30VDC
