Apraksts

• Manufacturer OMRON
• Type of relay electromagnetic
• Contacts configuration DPDT
• Contacts configuration
• Rated coil voltage 24V DC
• Contact current max. 10A
• AC contacts rating @R(at resistive load) 10A / 220V AC
• at resistive load
• DC contacts rating @R(at resistive load) 10A / 24V DC
• at resistive load
• Switched voltage max. 125V DC, max. 250V AC
• Relay variant industrial
• Relay series MY2
• Operating temperature -55...70°C

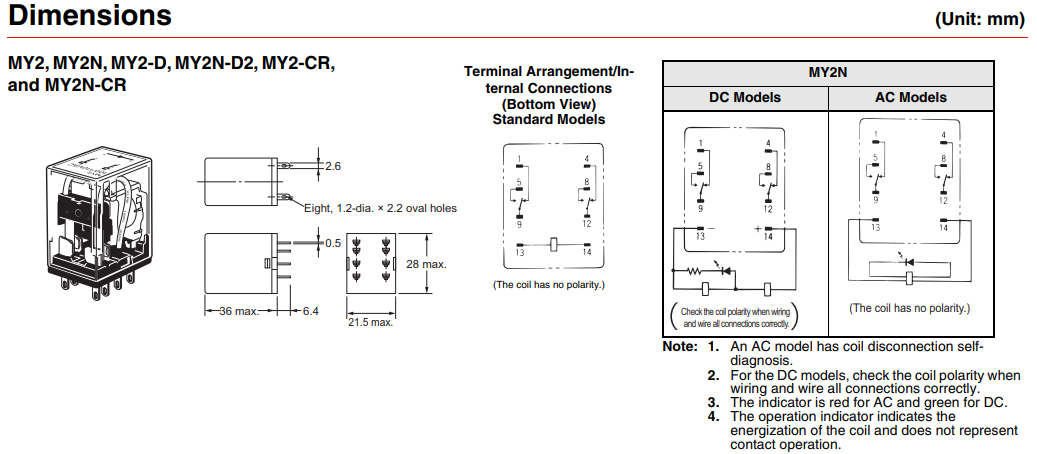

• Body dimensions 27.94x21.59x36.06mm
• Coil resistance 636Ω
• Coil current 37.7mA
• Coil power consumption 0.9W
• Leads connectors 2,5x0,5mm
• Related items PY08-02, PYF08A-E
• Indication LED
• Gross weight35 g

Parametri

OMRON
DC24V
DPDT
uz pārslēgšanu
monostabilais
2
2x10A/250VAC
2x10A/24VDC

Papildu dokumentācija
