Apraksts

• Manufacturer OMRON
• Type of relay electromagnetic
• Contacts configuration  DPDT
• Rated coil voltage 24V DC
• AC contacts rating @R  10A / 110V AC
• DC contacts rating @R  10A / 24V DC
• Contact current max. 10A
• Switched voltage max. 125V DC,  max. 250V AC
• Relay variant industrial
• Mounting socket
• Coil voltage min. 19.2V DC
• Relay series LY2
• Operating temperature -25...40°C

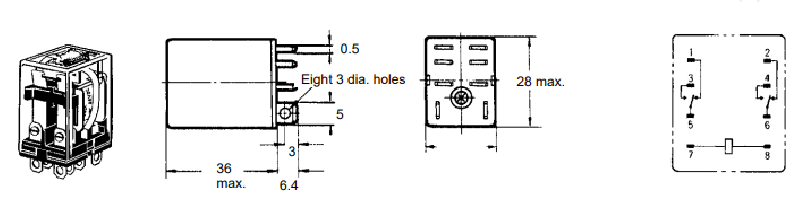

• Body dimensions 28x21.5x36mm
• Coil resistance 650Ω
• Mechanical durability 100000000 cycles
• Operate time 25ms
• Release time 25ms
• Contact resistance 50mΩ
• Coil power consumption 0.9W
• Leads 4,8x0,5mm connectors
• Switching capacity 240W,  1100VA
• Related items PT08-0,  PTF08A-E
• Additional information
• Gross weight: 34.9 g
• Manufacturer part number: LY2 24VDC

Parametri

OMRON
DC24V
DPDT
2x10A/250VAC
2x10A/24VDC
uz pārslēgšanu
monostabilais
2
