Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration  DPDT
• Rated coil voltage 24V DC
• AC contacts rating @R  1A / 120V AC
• (at resistive load)
• DC contacts rating @R  2A / 24V DC
• (at resistive load)
• Contact current max. 2A
• Switched voltage max. 24V DC,  max. 120V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 2.88kΩ
• Coil voltage min. 18V DC
• Coil voltage max. 36V DC
• Operate time 4ms

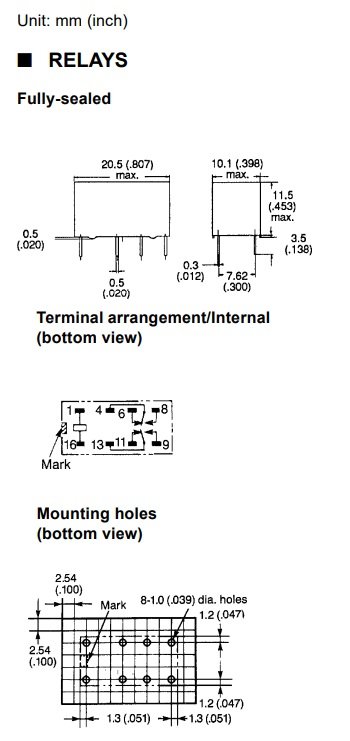

• Body dimensions 21x10.1x12.1mm
• Release time 4ms
• Coil power consumption 200mW
• IP rating IP64
• Mechanical durability 10000000 cycles
• Operating temperature -30...80°C
• Weight 4.8g
• Relay series RSM822
• Contact resistance 100mΩ
• Electrical life 100000 cycles
• Contact material AgPd/Au 0,2μm

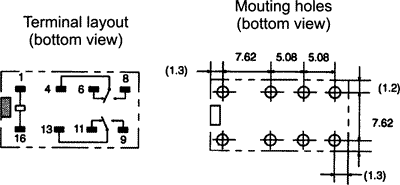

• Terminal pitch 5mm
• OEM number 2611728
• Additional information
• Gross weight: 5.135 g
• Manufacturer part number: RSM822-6112-85-S024

Parametri

DC24V
DPDT
uz pārslēgšanu
monostabilais
2
RELPOL
2x1A/120VAC
2x2A/24VDC

Papildu dokumentācija
