Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistance load) 5A / 250VAC
• DC contacts rating @R
• (at resistance load) 5A / 24VDC
• Contact current max. 10A
• Switched voltage max 220V DC, max 250V AC
• Relay variant industrial
• Mounting socket
• Coil voltage min. 19.2V DC
• Relay series R2M
• Operating temperature -40...55°C

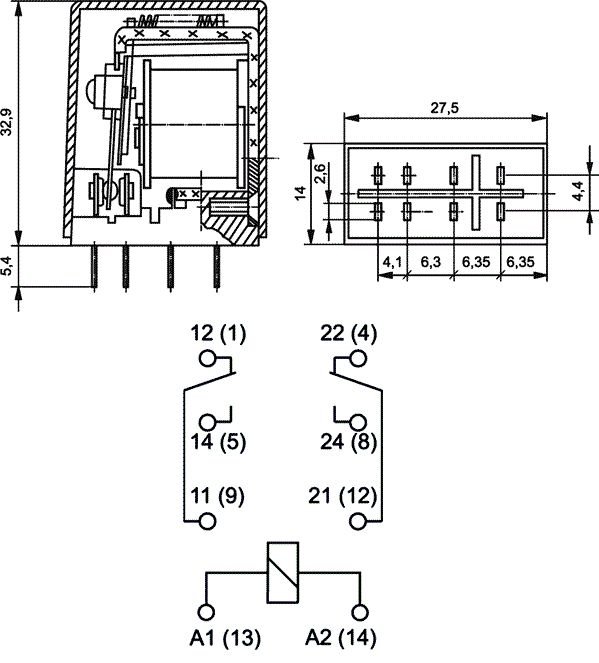

• Body dimensions 27.5 x 14 x 33mm
• Coil resistance 750Ω
• Mechanical durability 1000000cycles
• Operate time 8ms
• Release time 7ms
• Switching capacity 1250VA
• Contact resistance 100mΩ
• Electrical life 20000000cycles
• Coil power consumption 0.9W
• Leads 2,6x0,5mm connectors
• Related items G2M, GZ2

Parametri

RELPOL
DC24V
DPDT
2x5A/250VAC
2x5A/24VDC
uz pārslēgšanu
monostabilais
2

Papildu dokumentācija
