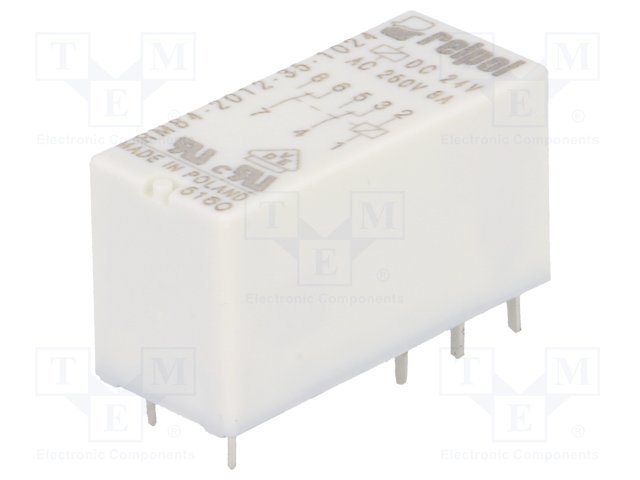

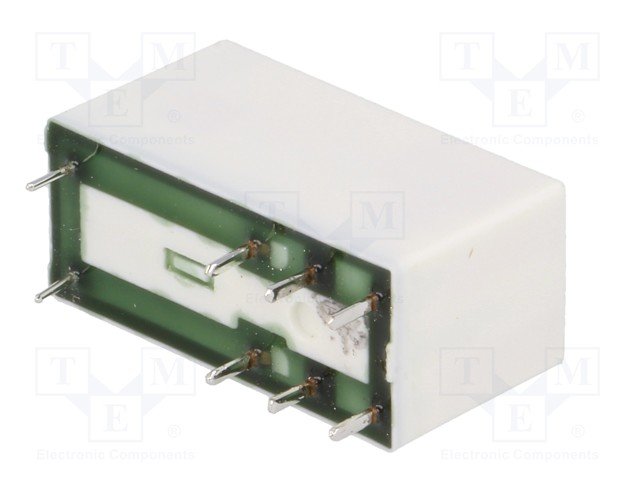

Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistance load) 8A / 250VAC
• DC contacts rating @R
• (at resistance load) 8A / 24VDC
• Contact current max. 8A
• Switched voltage max 440V AC, max 250V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1.44kΩ
• Coil voltage min. 16.8V DC
• Coil voltage max. 61.2V DC
• Operate time 7ms

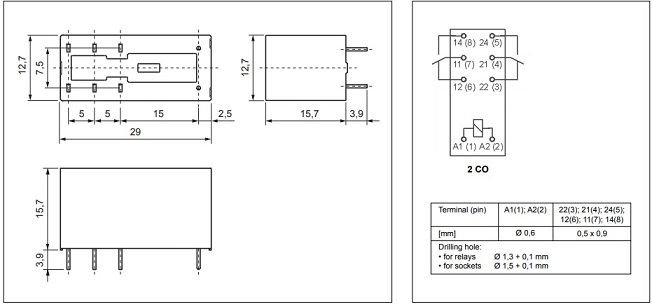

• Body dimensions 29 x 12.7 x 15.7mm
• Release time 3ms
• Coil power consumption 480mW
• IP rating IP67
• Mechanical durability 30000000cycles
• Operating temperature -40...85°C
• Weight 14g
• Relay series RM84
• Contact resistance 100mΩ
• Contact material AgNi
• Terminal pitch 5mm
• Height 15.7mm
• Number of pins 8

Parametri

RELPOL
DC24V
2x8A/250VAC
2x8A/24VDC
monostabilais
2
DPDT
uz pārslēgšanu
