Apraksts

• Manufacturer TE Connectivity
• Relay type electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 8 A / 250 VAC
• DC contacts rating
• (at resistance load) 8 A / 30 VDC
• Contact current max. 8A
• Switched voltage max 400V AC, max 300V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1.44kΩ
• Coil voltage min. 16.8V DC
• Operate time 7ms
• Body dimensions 29 x 12.7 x 15.7mm
• Release time 2ms
• Coil power consumption 400mW
• Sealing IP40
• Mechanical durability 300000000cycles
• Operating temperature -40...70°C
• Weight 14g
• Relay series RT2
• Contact material AgNi 90/10

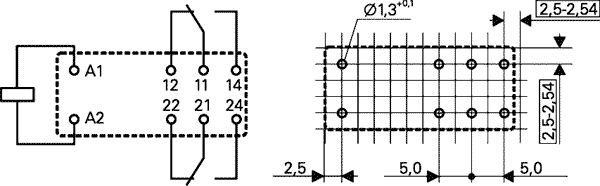

• Contacts pitch 5mm
• Number of pins 8
• Height 15.7mm

Parametri

TE Connectivity
DC24V
DPDT
2x8A/250VAC
2x8A/30VDC
uz pārslēgšanu
monostabilais
2
