Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 10 A / 120 VAC
• DC contacts rating
• (at resistance load) 10 A / 24 VDC
• Contact current max. 10A
• Switched voltage max 240V AC, max 100V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1.28kΩ;
• Operate time 10ms

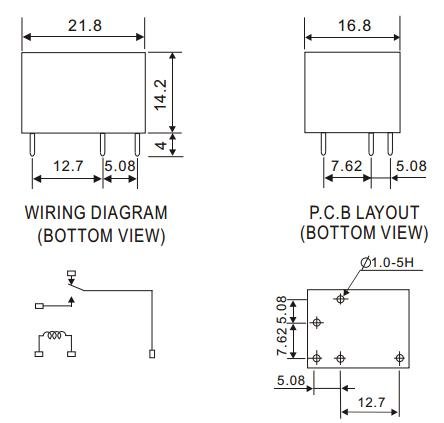

• Body dimensions 21.8 x 16.8 x 14.2mm
• Release time 10ms
• Coil power consumption 450mW
• Operating temperature -25...60°C
• Weight 10g
• Relay series LT
• Contact resistance 100mΩ;
• Contact material AgCdO
• Contacts pitch 5mm
• Coil current 18.7mA

Parametri

RAYEX ELECTRONICS
DC24V
SPDT
10A/240VAC
10A/24VDC
uz pārslēgšanu
monostabilais
1
