Apraksts

• Manufacturer HONGFA RELAY
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistance load) 10A / 250V AC
• DC contacts rating @R
• (at resistance load) 10A / 30V DC
• Contact current max. 10A
• Switched voltage max. 125V DC, max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 2.35kΩ
• Coil voltage min. 16.8V DC
• Coil voltage max. 36V DC
• Operate time 10ms

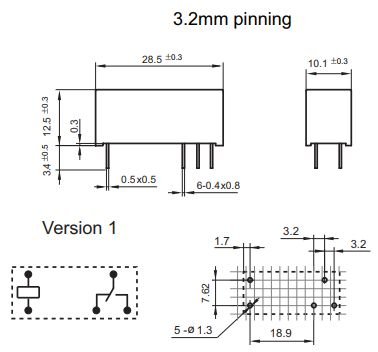

• Body dimensions 28.5x12.5x10.1mm
• Release time 5ms
• Coil power consumption 220mW
• Operating temperature -40...85°C
• Contact resistance 100mΩ
• Contact material AgSnO2
• Terminal pitch 3.2mm

Parametri

HONGFA RELAY
DC24V
SPDT
10A/250VAC
10A/30VDC
uz pārslēgšanu
monostabilais
1
