Apraksts

• Manufacturer FINDER
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 24V DC
• Contact current max. 20A
• AC contacts rating @R(at resistive load) 10A / 250V AC
• DC contacts rating @R(at resistive load) 10A / 30V DC
• Switched voltage max. 220V DC, max. 400V AC
• Relay variant miniature
• Mounting PCB, socket

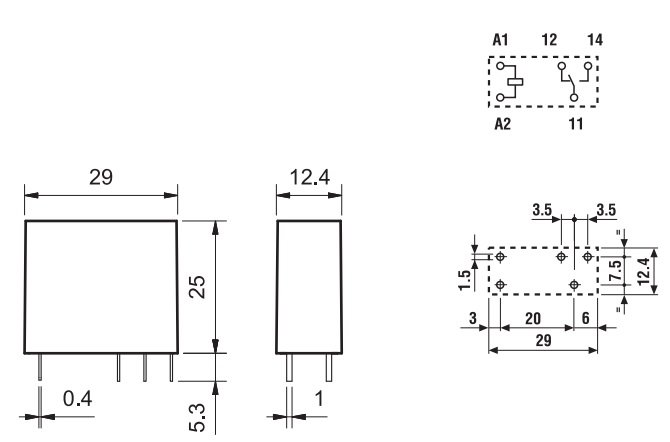

• Body dimensions 29x12.4x25mm
• Coil power consumption 500mW
• Operating temperature -40...85°C
• Relay series 40.31
• Terminal pitch 3.5mm
• Gross weight16.37 g

Parametri

FINDER
DC24V
SPDT
10A/250VAC
10A/30VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
