Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 24V DC
• AC contacts rating @R  12A / 250V AC
• (at resistive load)
• DC contacts rating @R  12A / 24V DC
• (at resistive load)
• Contact current max. 12A
• Switched voltage max. 300V DC,  max. 400V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1.44kΩ
• Coil voltage min. 16.8V DC
• Body dimensions 29x12.7x15.7mm
• Coil power consumption 400mW
• Mechanical durability 1000000 cycles
• Operating temperature -40...85°C
• Relay series RZ
• Contact material AgNi 90/10
• Terminal pitch 3.5mm

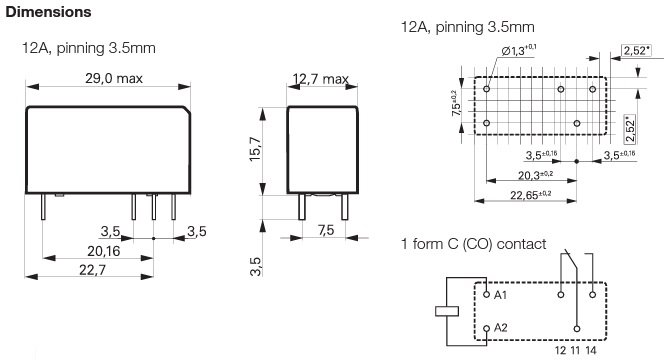

• Dimensions see
• Output configuration see
• Additional information
• Gross weight: 10.5 g
• Manufacturer part number: 1-1415899-1

Parametri

DC24V
SPDT
12A/250VAC
uz pārslēgšanu
monostabilais
1
TE Connectivity
12A/24VDC
