Apraksts

• Specification

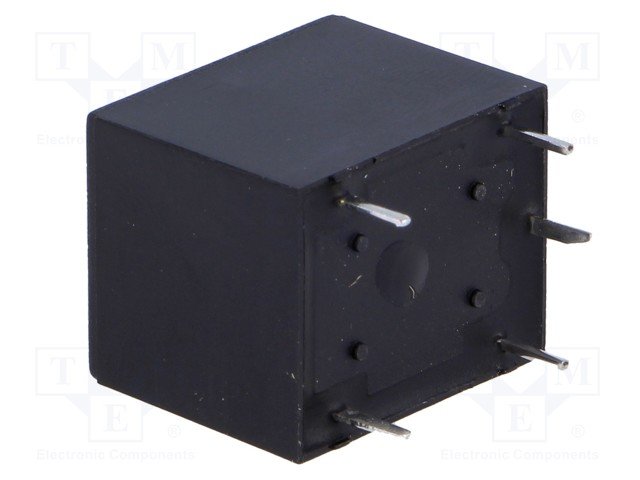

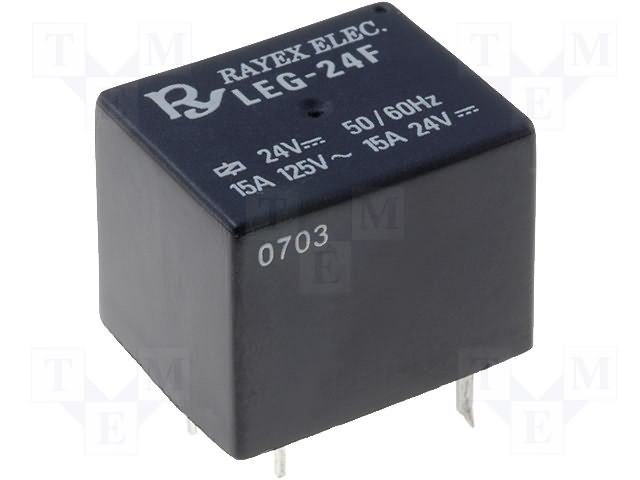

• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 15 A / 120 VAC
• DC contacts rating
• (at resistance load) 15 A / 24 VDC
• Contact current max. 15A
• Switched voltage max 240V AC, max 100V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1.6kΩ;
• Operate time 8ms
• Body dimensions 19.5 x 15.8 x 15mm
• Release time 8ms
• Coil power consumption 360mW
• Operating temperature -25...60°C
• Relay series LEG
• Contact resistance 100mΩ;
• Contacts pitch 2mm
• Coil current 15mA

Parametri

FORWARD INDUSTRIAL CO.
DC24V
SPDT
15A/125VAC
15A/24VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
