Apraksts

• Manufacturer OMRON
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistance load) 16A / 250VAC
• Contact current max. 16A
• Switched voltage max 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1.44kΩ
• Operate time 0.6ms

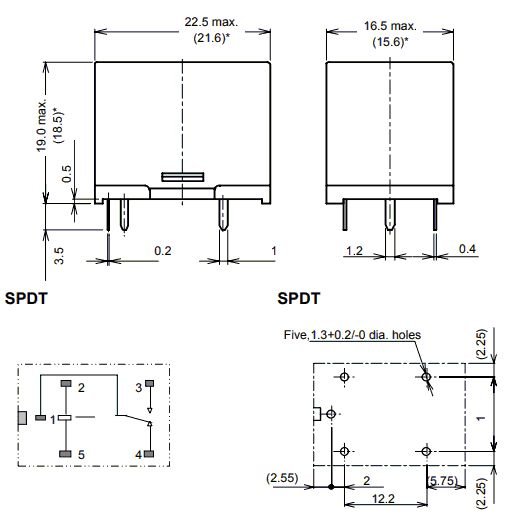

• Body dimensions 22.5 x 16.5 x 19mm
• Release time 7.2ms
• Coil power consumption 400mW
• Operating temperature -40...85°C
• Relay series G5LE-E
• Contact resistance 100mΩ
• Terminal pitch 2mm
• Coil current 16.7mA Additional information
• Gross weight: 0.01 kg

Parametri

OMRON
DC24V
SPDT
16A/250VAC
10A/35VDC
uz pārslēgšanu
monostabilais
1
