Apraksts

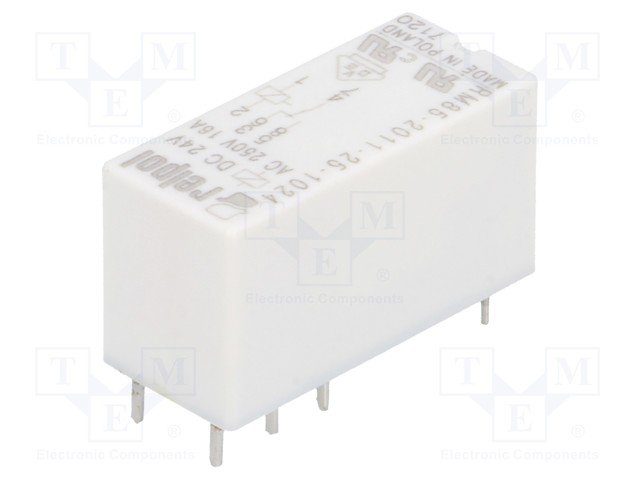

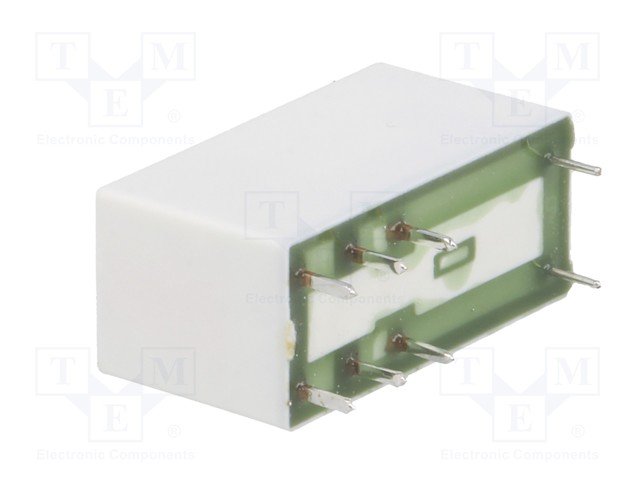

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 24V DC
• AC contacts rating @R  16A / 250V AC
• DC contacts rating @R  16A / 24V DC
• Contact current max. 16A
• Switched voltage max. 250V DC,  max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1440Ω
• Coil voltage min. 16.8V DC
• Coil voltage max. 30.6V DC
• Operate time 8ms

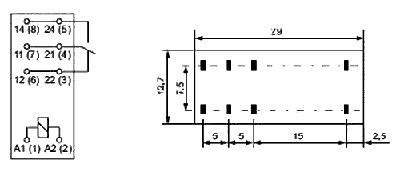

• Body dimensions 29x12.7x15.7mm
• Release time 3ms
• Coil power consumption 480mW
• IP rating IP40
• Operating temperature -40...85°C
• Relay series RM85
• Contact resistance 100mΩ
• Contact material AgNi
• Terminal pitch 5mm
• Related items GD50,  GZ80,  GZM80,  GZM80-BK,  GZT80,  PW80
• Body colour white
• Current rating 16A
• Output configuration see
• Additional information
• Gross weight: 13.28 g
• Manufacturer part number: RM85-2011-25-1024

Parametri

RELPOL
DC24V
SPDT
16A/250VAC
16A/24VDC
uz pārslēgšanu
monostabilais
1
