Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 24V DC
• AC contacts rating @R  16A / 250V AC
• DC contacts rating @R  16A / 24V DC
• Contact current max. 16A
• Switched voltage max. 300V DC,  max. 400V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1.44kΩ
• Coil voltage min. 16.8V DC

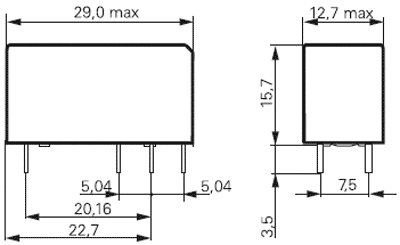

• Body dimensions 29x12.7x15.7mm
• Coil power consumption 400mW
• Mechanical durability 1000000 cycles
• Operating temperature -40...85°C
• Relay series RZ
• Contact material AgNi 90/10
• Terminal pitch 5mm
• Additional information
• Gross weight: 10.59 g
• Manufacturer part number: 2-1415899-3

Parametri

TE Connectivity
DC24V
SPDT
16A/250VAC
16A/24VDC
uz pārslēgšanu
monostabilais
1
