Apraksts

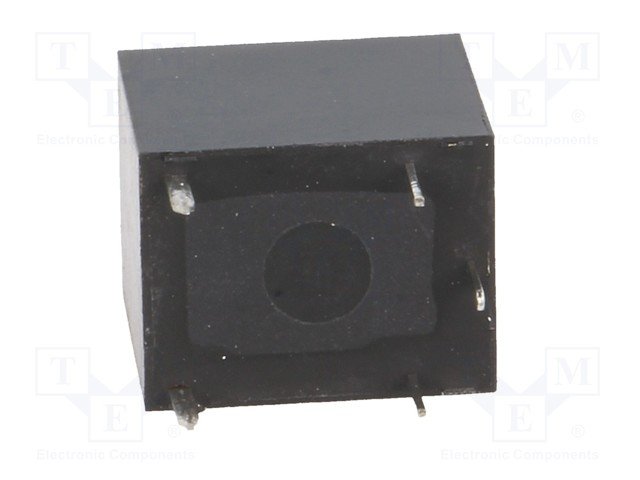

• Manufacturer SHORI ELECTRIC
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 24V DC
• DC contacts rating
• (at resistance load) 20 A / 14 VDC
• Contact current max. 20A
• Switched voltage max 14V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 960Ω
• Operate time 10ms

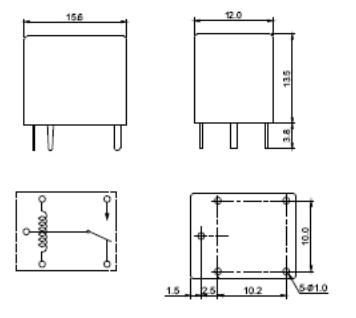

• Body dimensions 15.6 x 12 x 13.5mm
• Release time 5ms
• Coil power consumption 600mW
• Operating temperature -30...55°C
• Relay series S3M
• Contact resistance 100mΩ
• Terminal pitch 2.5mm
• Coil current 25mA

Parametri

SHORI ELECTRIC
DC24V
SPDT
20A/14VDC
20A/14VDC
uz pārslēgšanu
monostabilais
1
