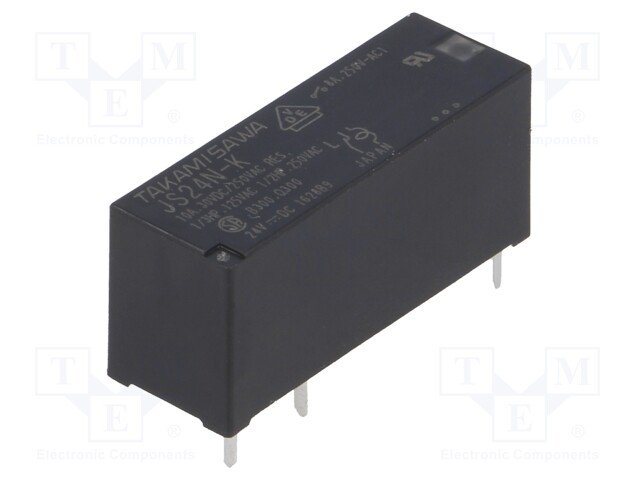

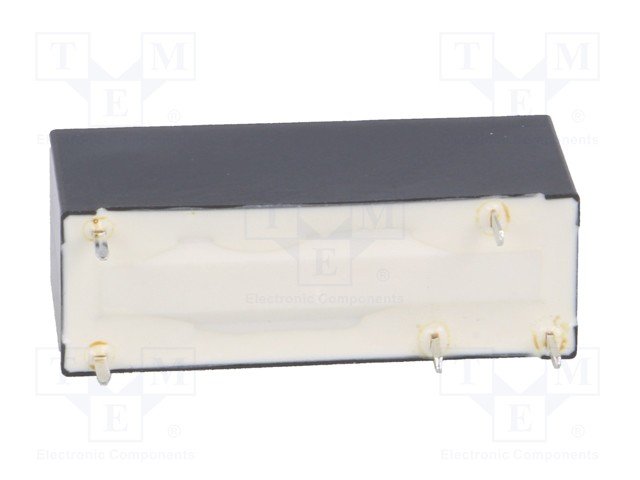

Relejs DC24V, SPDT, 8A/250VAC, 8A/24VDC, 2.35kΩ(10.2mA), viens kontakts uz pārslēgšanu, 29x10x15mm, FUJITSU

Cena: 2.53 €
00019306
JS-24N-K
15
  • Apraksts

    • Manufacturer FUJITSU
    • Type of relay electromagnetic
    • Contacts configuration  SPDT
    • Rated coil voltage 24V DC
    • AC contacts rating @R  8A / 250V AC
    • DC contacts rating @R  8A / 24V DC
    • Contact current max. 8A
    • Switched voltage max. 150V DC,  max. 400V AC
    • Relay variant miniature
    • Mounting PCB
    • Coil resistance 2.35kΩ
    • Coil voltage min. 16.8V DC
    • Coil voltage max. 56.6V DC
    • Operate time 10ms

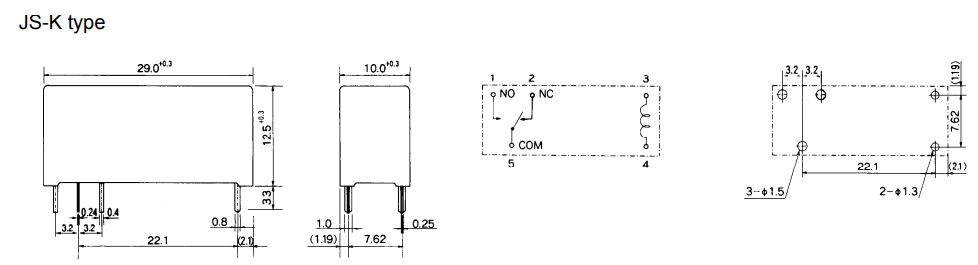

    • Body dimensions 29x10x12.5mm
    • Release time 5ms
    • Coil power consumption 400mW
    • Operating temperature -40...85°C
    • Relay series JS
    • Contact resistance 100mΩ
    • Contact material AgSnO2
    • Terminal pitch 3.2mm
    • Contact plating gold-plated
    • Additional information
    • Gross weight: 7.747 g
    • Manufacturer part number: JS-24N-K

    Parametri

    FUJITSU
    DC24V
    SPDT
    8A/250VAC
    8A/24VDC
    uz pārslēgšanu
    monostabilais
    1
