Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 6 A / 250 VAC
• DC contacts rating
• (at resistance load) 3 A / 30 VDC
• Contact current max. 15A
• Switched voltage max 400V AC, max 220V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 2.88kΩ;

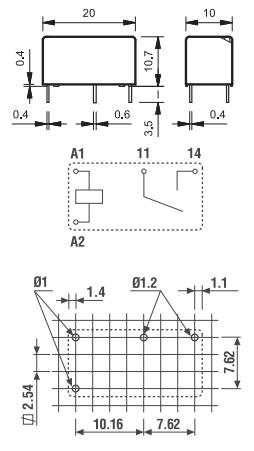

• Body dimensions 20 x 10.7 x 10mm
• Coil power consumption 200mW
• Sealing IP67
• Operating temperature -40...85°C
• Relay series 32
• Contact material AgCdO
• Contacts pitch 7.62mm
• Coil current 8.3mA

Parametri

FINDER
DC24V
SPST
6A/250VAC
3A/30VDC
uz pārslēgšanu
monostabilais
1
