Relejs DC24V, SPST-NO, 10A/250VAC, 10A/30VDC, 2.35kΩ(10mA), viens kontakts(5.08mm) uz saslēgšanu, 28.5x12.5x10.1mm, HONGFA RELAY
Relejs DC24V, SPST-NO, 10A/250VAC, 10A/30VDC, 2.35kΩ(10mA), viens kontakts(5.08mm) uz saslēgšanu, 28.5x12.5x10.1mm, HONGFA RELAY
Relejs DC24V, SPST-NO, 10A/250VAC, 10A/30VDC, 2.35kΩ(10mA), viens kontakts(5.08mm) uz saslēgšanu, 28.5x12.5x10.1mm, HONGFA RELAY
Relejs DC24V, SPST-NO, 10A/250VAC, 10A/30VDC, 2.35kΩ(10mA), viens kontakts(5.08mm) uz saslēgšanu, 28.5x12.5x10.1mm, HONGFA RELAY
Relejs DC24V, SPST-NO, 10A/250VAC, 10A/30VDC, 2.35kΩ(10mA), viens kontakts(5.08mm) uz saslēgšanu, 28.5x12.5x10.1mm, HONGFA RELAY Relejs DC24V, SPST-NO, 10A/250VAC, 10A/30VDC, 2.35kΩ(10mA), viens kontakts(5.08mm) uz saslēgšanu, 28.5x12.5x10.1mm, HONGFA RELAY Relejs DC24V, SPST-NO, 10A/250VAC, 10A/30VDC, 2.35kΩ(10mA), viens kontakts(5.08mm) uz saslēgšanu, 28.5x12.5x10.1mm, HONGFA RELAY Relejs DC24V, SPST-NO, 10A/250VAC, 10A/30VDC, 2.35kΩ(10mA), viens kontakts(5.08mm) uz saslēgšanu, 28.5x12.5x10.1mm, HONGFA RELAY

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Relejs DC24V, SPST-NO, 10A/250VAC, 10A/30VDC, 2.35kΩ(10mA), viens kontakts(5.08mm) uz saslēgšanu, 28.5x12.5x10.1mm, HONGFA RELAY

Cena: 2.99 €
00029063
HF118F/024-1H5T
6

  • Apraksts

    • Manufacturer HONGFA RELAY
    • Type of relay electromagnetic

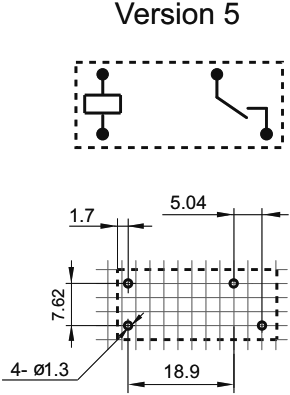

    • Contacts configuration SPST-NO
    • Rated coil voltage 24V DC
    • Contact current max. 10A
    • AC contacts rating @R(at resistive load) 10A / 250V AC
    • DC contacts rating @R(at resistive load) 10A / 30V DC
    • Switched voltage max. 125V DC, max. 440V AC
    • Relay variant miniature
    • Mounting PCB
    • Coil resistance 2.35kΩ
    • Coil voltage min. 16.8V DC
    • Coil voltage max. 36V DC
    • Operate time 10ms

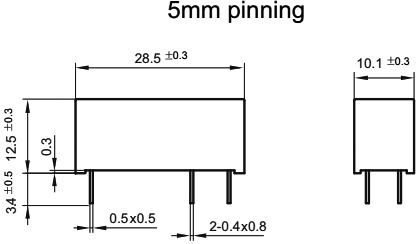

    • Body dimensions 28.5x12.5x10.1mm
    • Release time 5ms
    • Coil power consumption 220mW
    • Operating temperature -40...85°C
    • Contact resistance 100mΩ
    • Contact material AgSnO2
    • Terminal pitch 5mm
    • Gross weight7.773 g

    Parametri

    HONGFA RELAY
    DC24V
    SPST-NO
    10A/250VAC
    10A/30VDC
    uz saslēgšanu
    monostabilais
    1

    Papildu dokumentācija
